A1200: Checking out my former lady :)
Last week was kinda painful cause I didn't have my A4000 to tinker, since I sent it's motherboard to Cosmos for general repairs (that will be covered in another thread though).
That's why I had time to check out the former lady that was sitting patiently in my office after I sold it's powerful heart (BPPC+BVision).

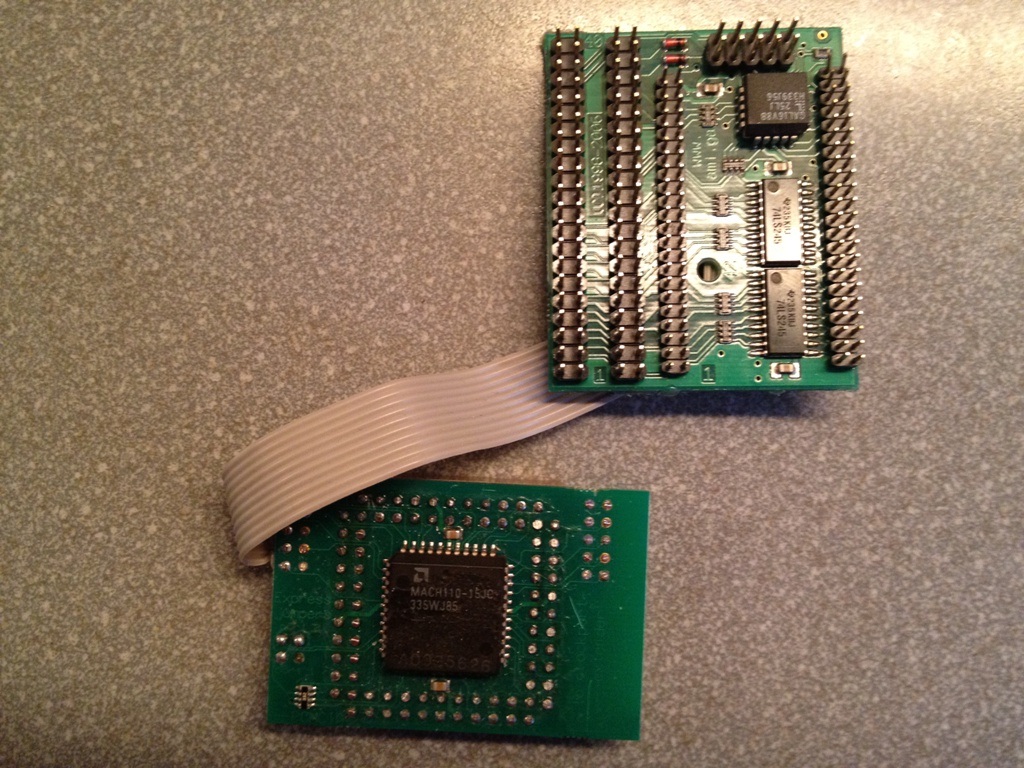

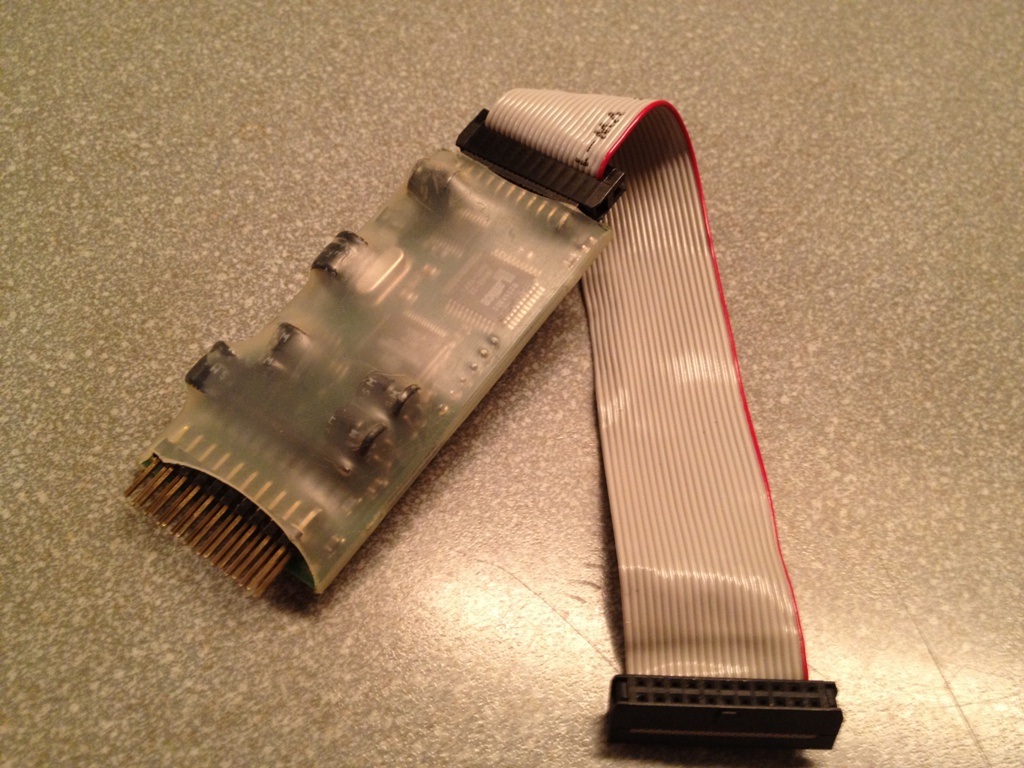

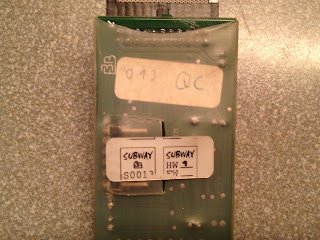

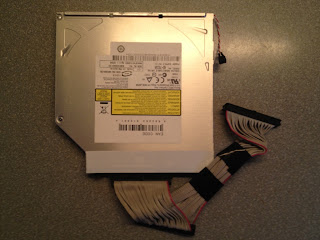

I thought about removing all components to clean them up and take some photos in case I decide to split and sell every part individually.
Those components are...
I was very sad to see these go so I decided for now to keep and re-install to my A1200.
The problem existed with Ian's ATX adapter and PicoPSU that for some reason, didn't work as intended. It worked but power button needed pushing A LOT of times which made me rethink about the whole idea of Push-On switch.
After fiddling around Ian's website and some schematics about ATX to Amiga Pinout... I removed Ian's ATX adapter (that took some time as I soldered PicoPSU directly to the adapter - you need to check some older posts to see it) and soldered the appropriate cables into it directly :)
After that, I only needed to wire Pin 13 and Pin 14 of PicoPSU into a simple On/Off switch and that was it.

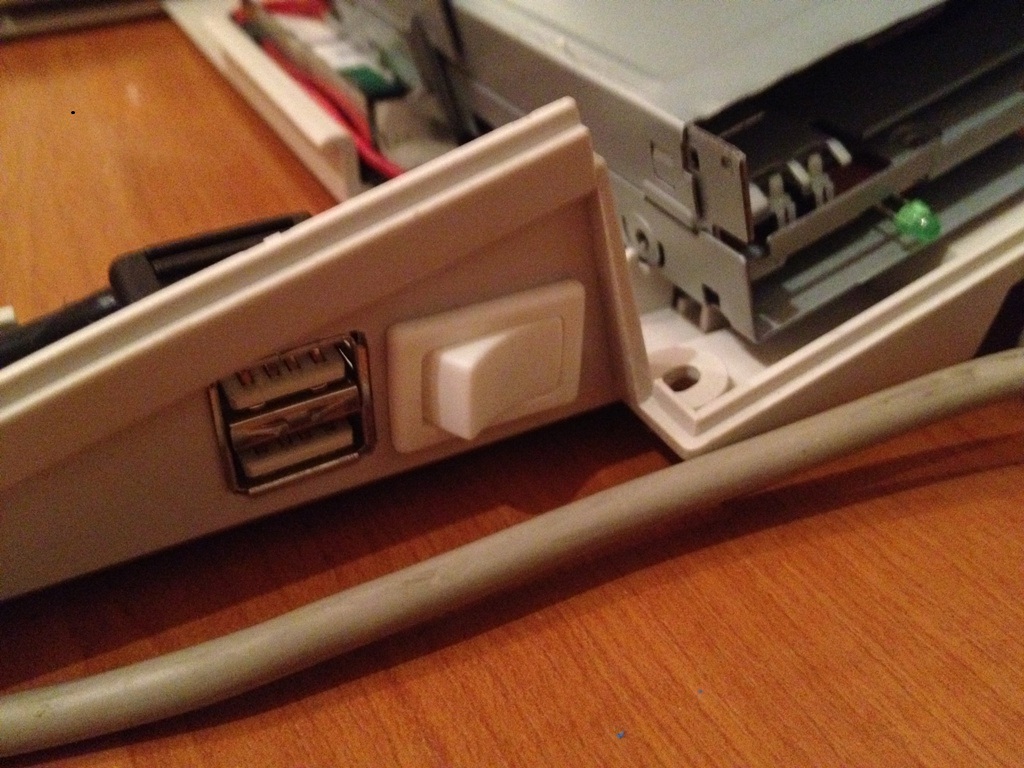

That's one white nice switch I had on my stash for quite some time (which replaced my old switch that was mounted on Ratte's Auto AGA/RTG switch).

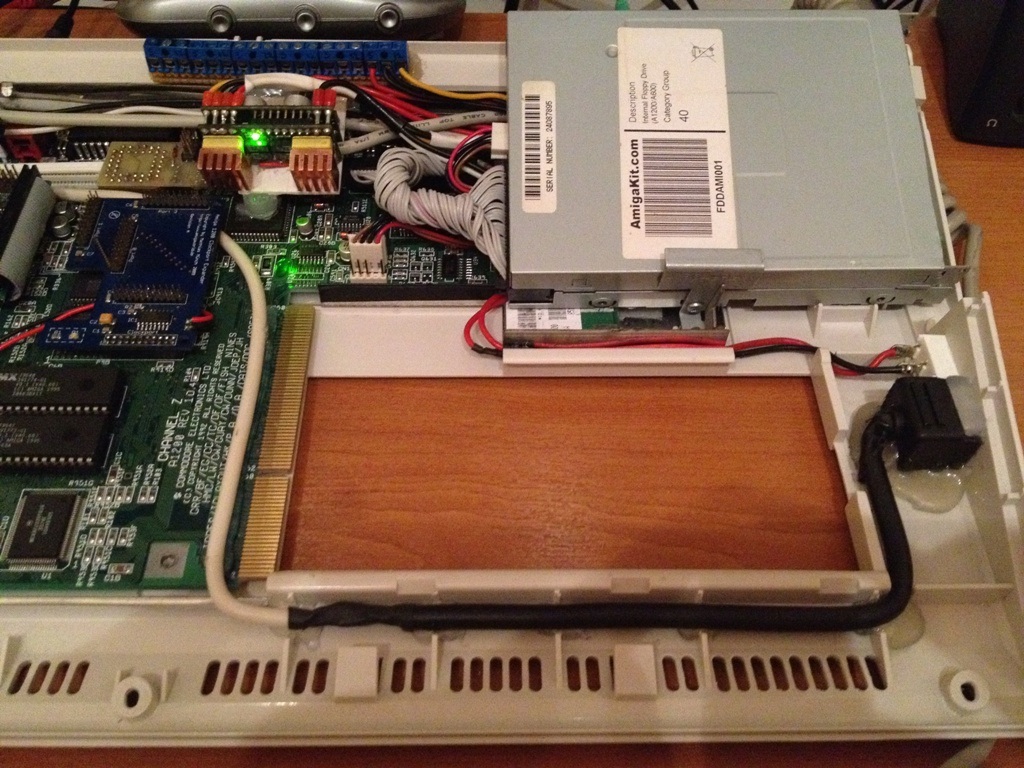

...and here is how I mounted PicoPSU now (without it's connector) into a plastic custom stand
Working really well I might add :)

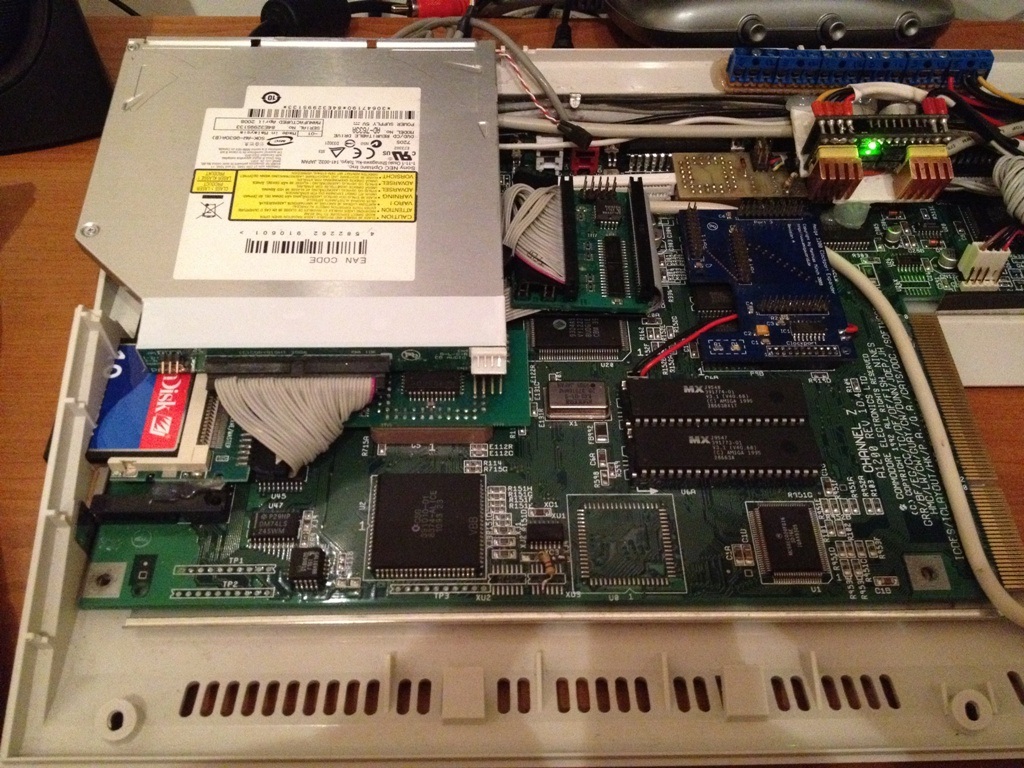

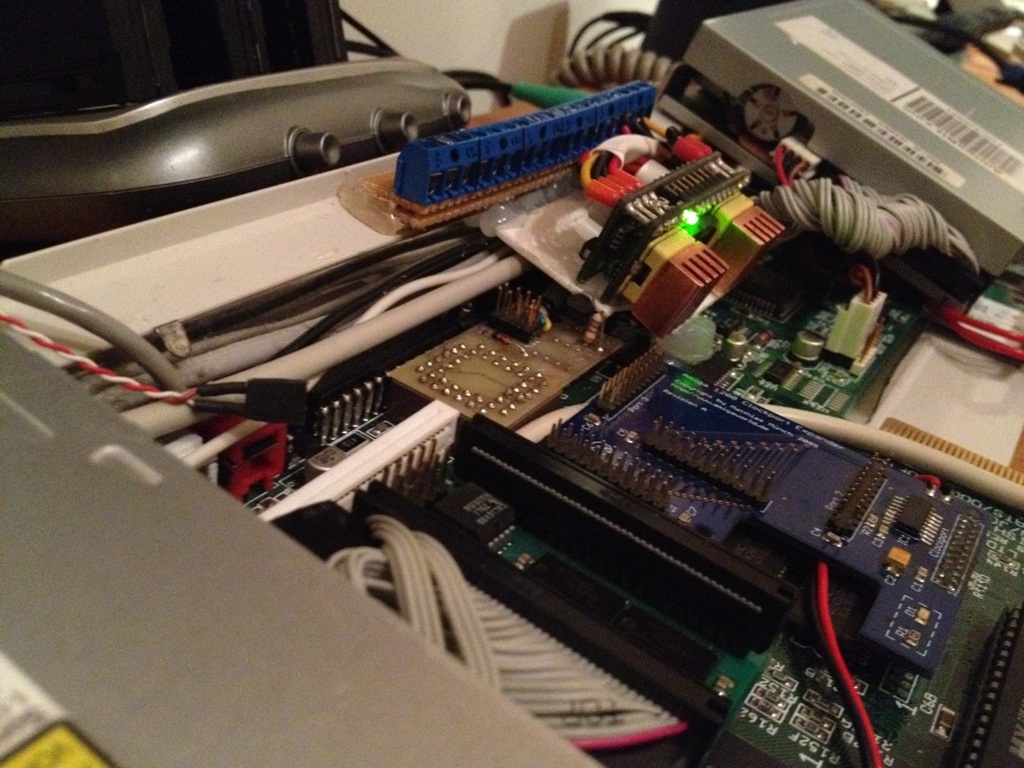

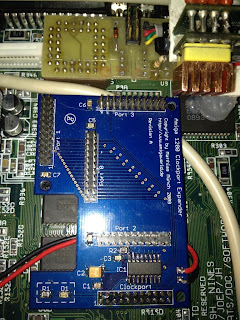

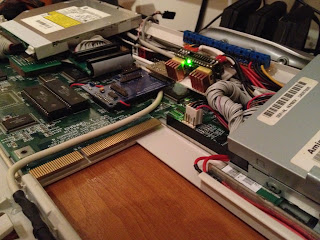

Check the following 2 photos to get a better general look.
You can also check a quick video I grabbed showing how fast it boots ClassicWB 68k.
Not feeling bad about keeping the lot in the end (at least for now).
Only thing missing right now is an 030 I think... Oh well, ACA1231 is close :)
Stay tuned \o/
