Vampire 500 V2 Part 1

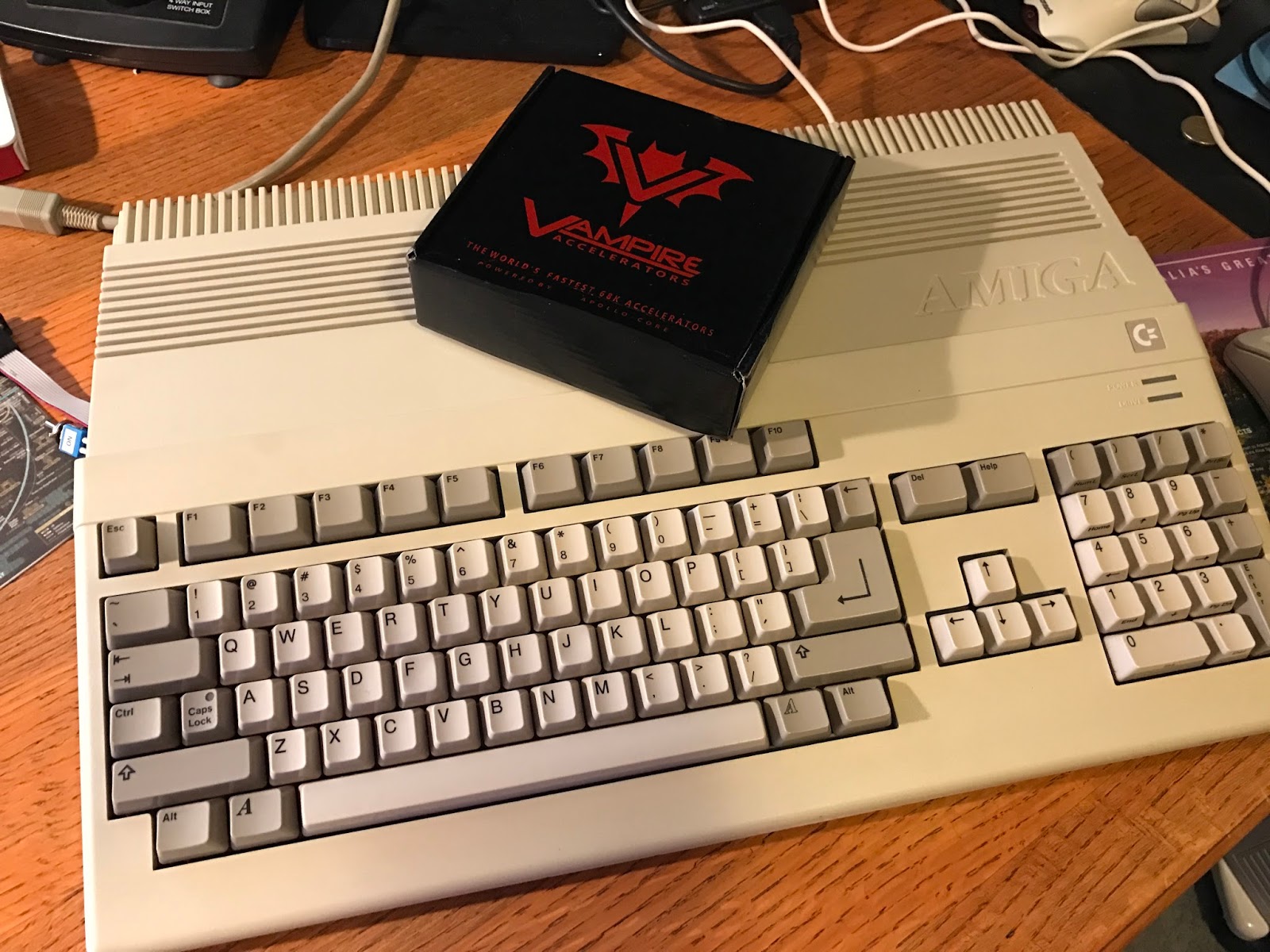

It was a very exciting week last week with the arrival of my Vampire 500 V2!
I doubt if many of my readers are unaware of this amazing accelerator for Classic Amigas, but basically the Vampire accelerator series for Amiga 500/2000 and Amiga 600 systems is the fastest accelerator available for Classic Amigas today!
It is a very exciting development, probably the most interesting development for Classic Amiga in 2016 in my opinion!
There has been no shortage of Amiga media, forum and website coverage of the amazing functionality and speed of this accelerator, and with the FPGA core, it is being constantly enhanced with new functions and features!
Currently it emulates a 68040EC processor at 195 times the speed of a stock Amiga 500, and 5 times the speed of an Amiga 4000/040 system!
The Vampire 500V2 has 128MB of fast memory, and it also has a Saga RTG driver compatible with the UAEgfx driver under Picasso96 to support 720p native HDMI output! It also has an onboard IDE port for connecting a CF card or other 2.5" IDE hard disk, and also a MicroSD port for using a MicroSD card as a hard drive too.
I assume you probably know all this, but it is amazing what this card can do. Furthermore there are plans to implement AGA support (on non AGA systems!), FPU support and plenty more besides!
Majsta (who makes these boards for the Amiga 500) released a small amount of these (still available on Ebay as I write this) for those who are willing to pay a substantial price premium to get it now, rather than pre-ordering and waiting months and potentially years to get one. Needless to say a lot of people want one, way more than they can make - they are hopelessly overwhelmed by the demand.
In return for the large outlay, the extra funds raised by these Ebay sales goes towards the costs of making the larger production runs for the pre orders a reality. So think of what I am doing as a kind of community service to help get your cards sooner! Well, that is my justification anyway :-)
Well, err, I fell into the category willing to pay way too much for the privilege of having one now. When I bought mine it was the Vampire 500 V2 board, which just recently was upgraded to the V2+ board with additional connector for Wifi module support (not currently implemented in the core)

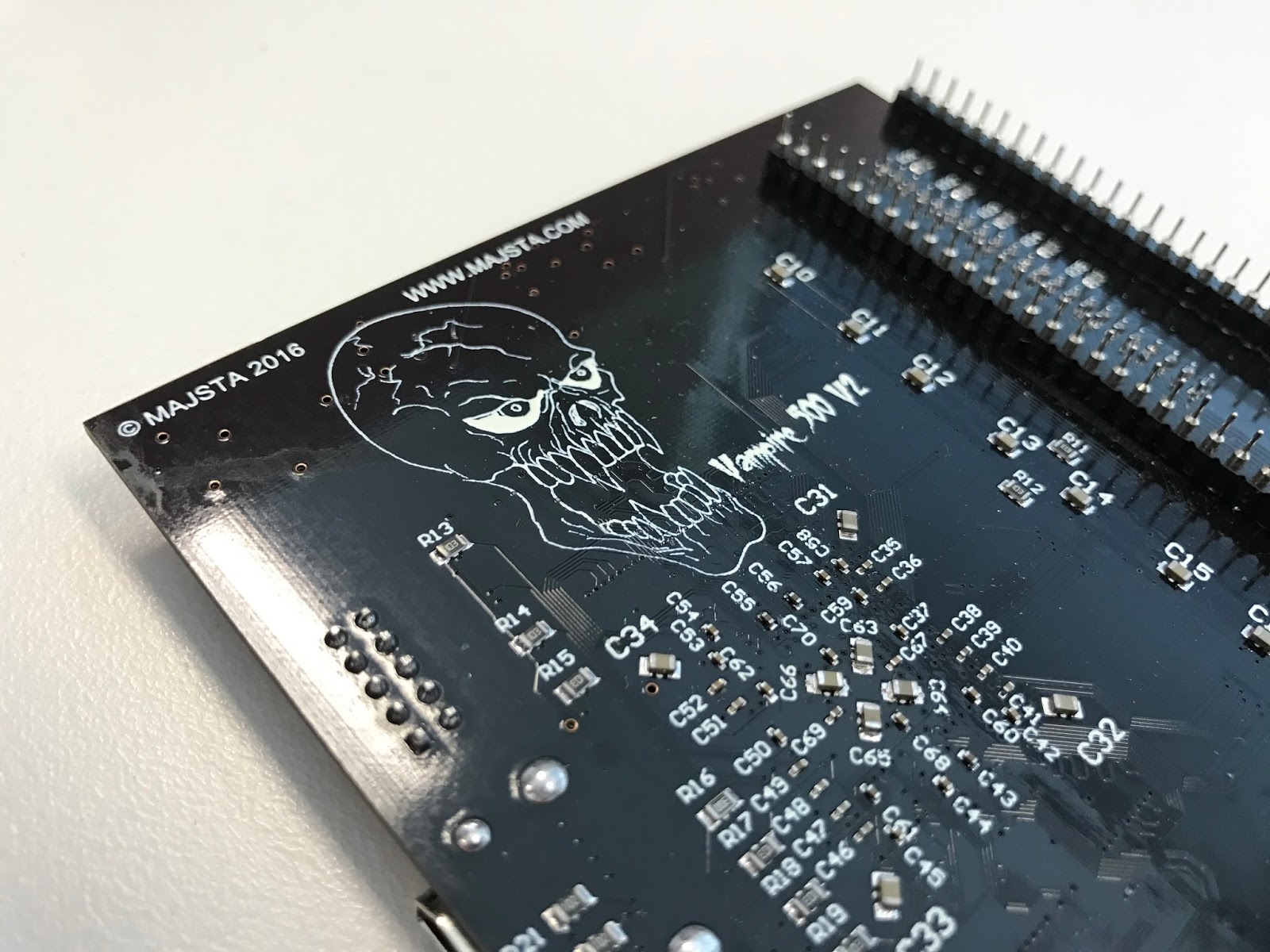

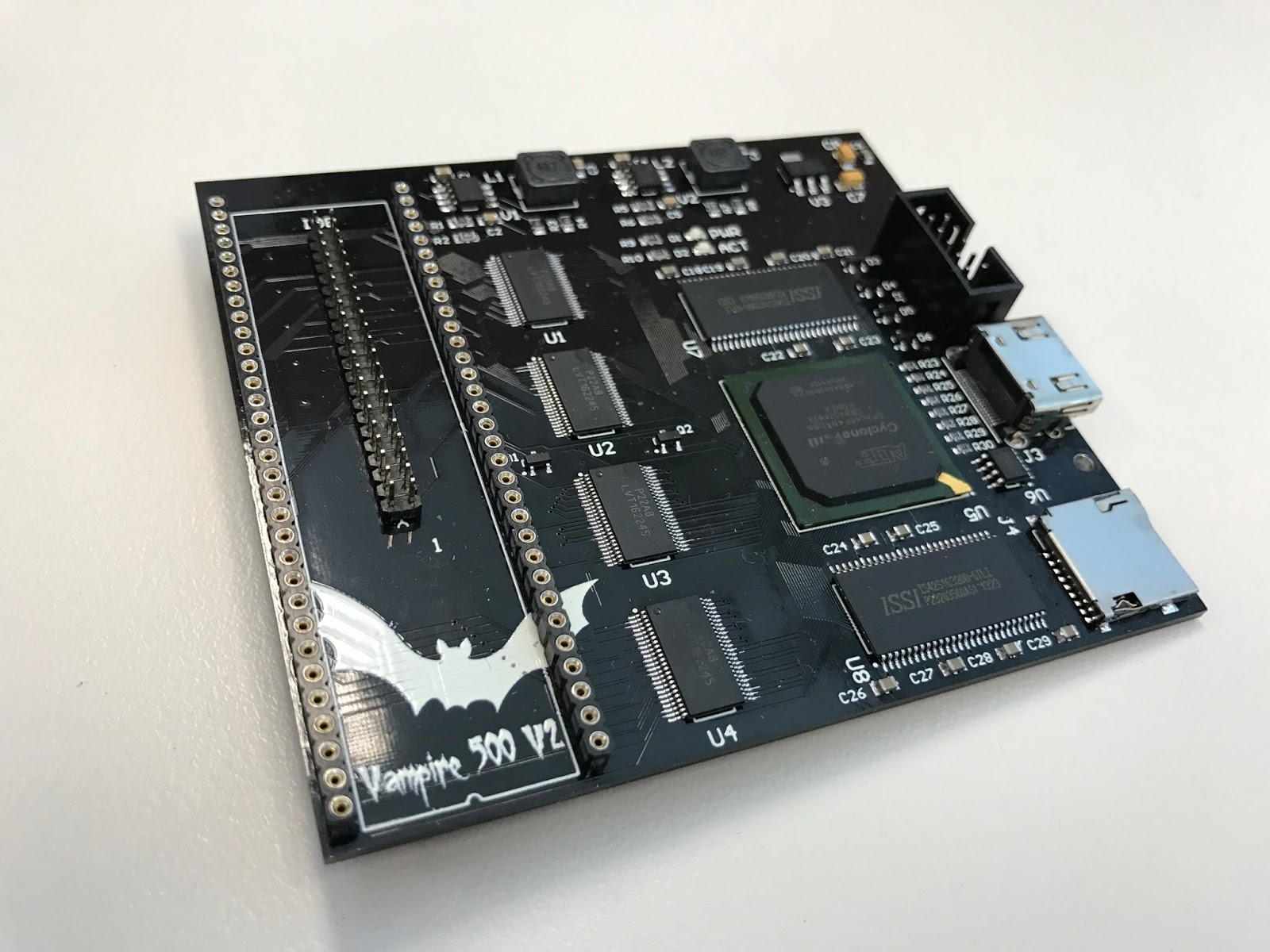

So let's take a closer look at my Vampire 500 V2:

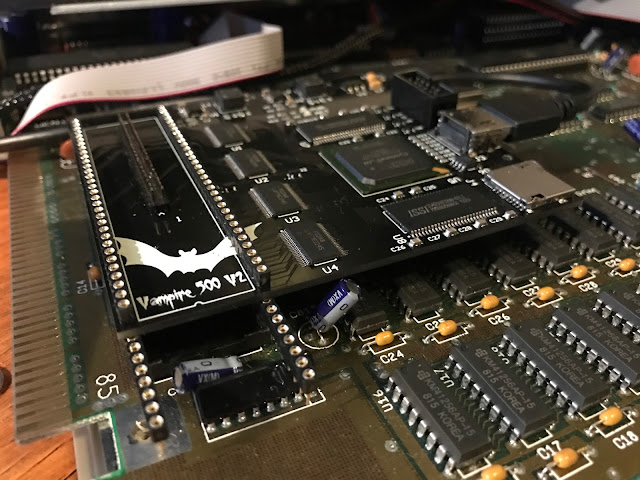

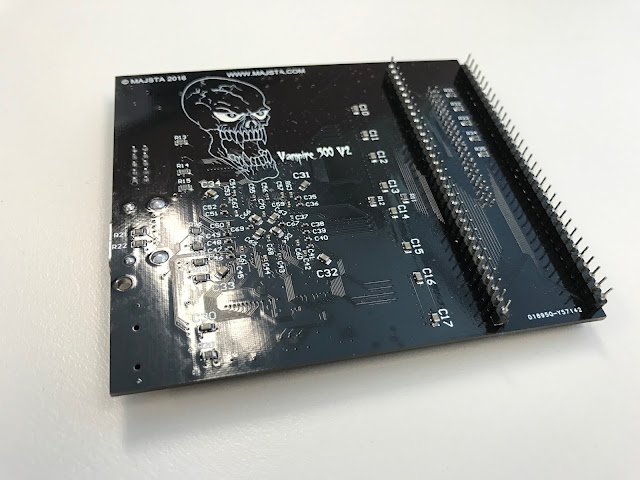

In the shot above and below you can see the left side section is installed in place of the normal 68000 processor on the Amiga, with the IDE port located above that connection. The HDMI, MicroSD ports are on the right hand side, with the JTAG connector to allow upgrading the firmware via USB from a PC/Mac.
Fortunately you can upgrade the firmware from the Amiga itself without connecting to a PC, which I shall show a bit later on.

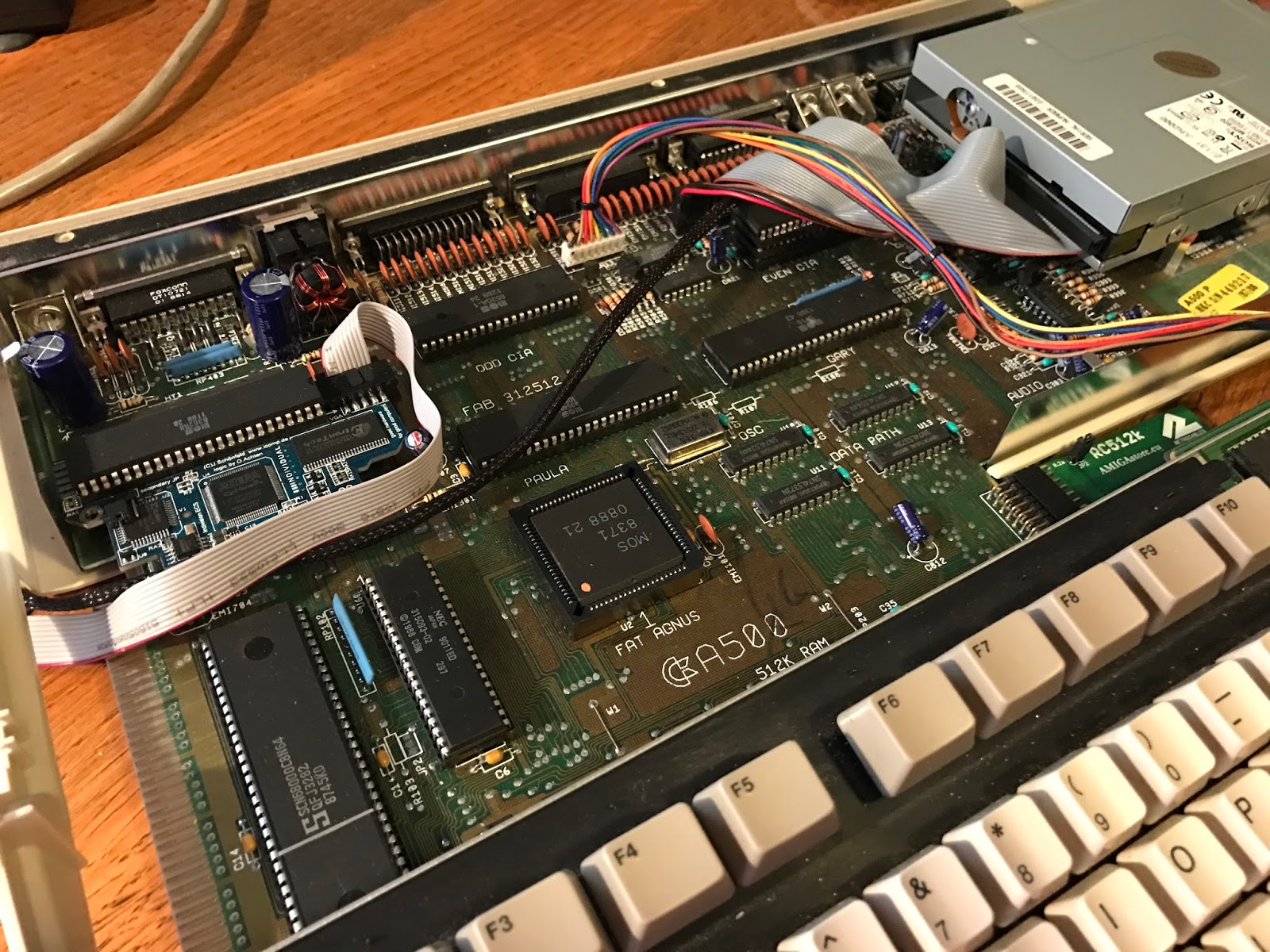

I was originally going to install this into the Amiga 500 system, but when I got it out I found out it has some kind of memory issue (green screen) which happened with or without the Vampire installed, which meant I had to change my plans somewhat.
I include some photos of that installation anyway, in case it is of interest:

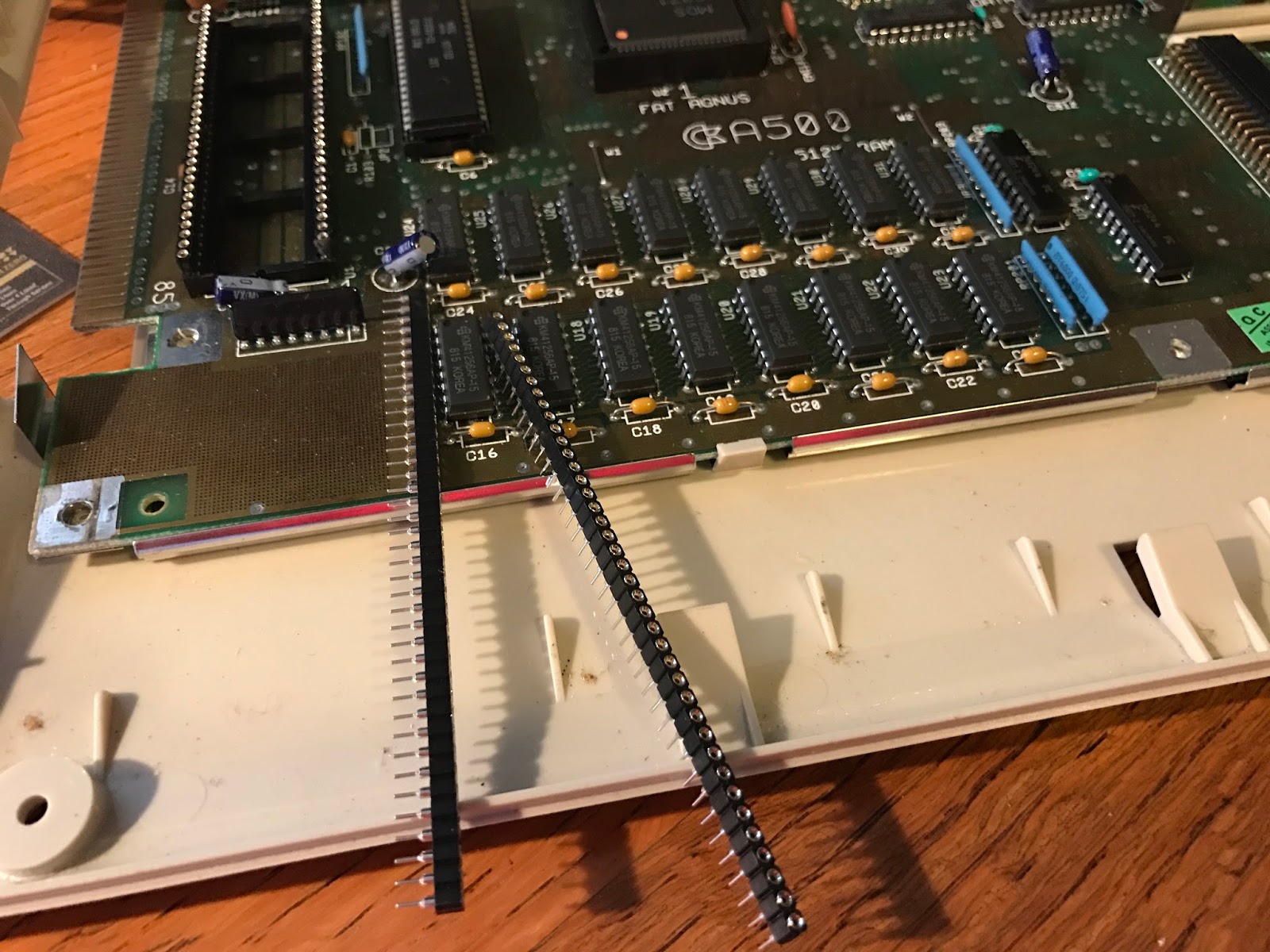

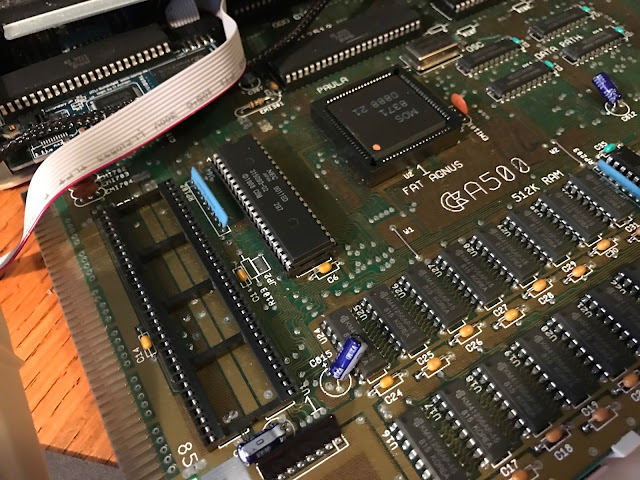

The Amiga 500 has a riser on the 68000 socket already, but needs another set of risers for the Vampire to clear the kickstart rom chip next to it:
Fortunately the Vampire had two (oversized) risers included for that exact purpose:

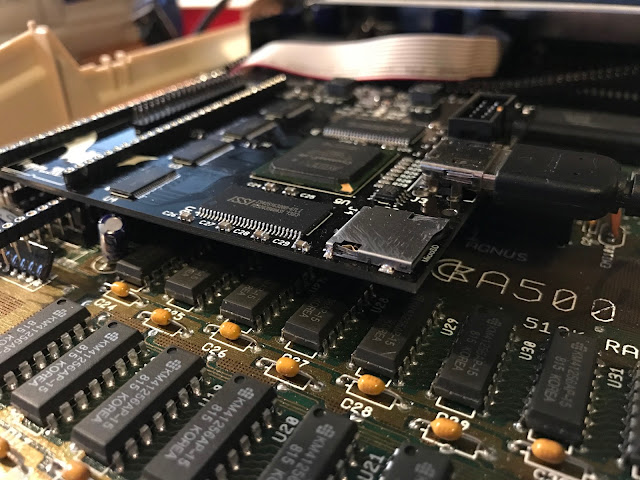

Here is the Vampire mounted in the Amiga 500:
Here is a CF card also attached, which actually came from my Amiga 1200 build:

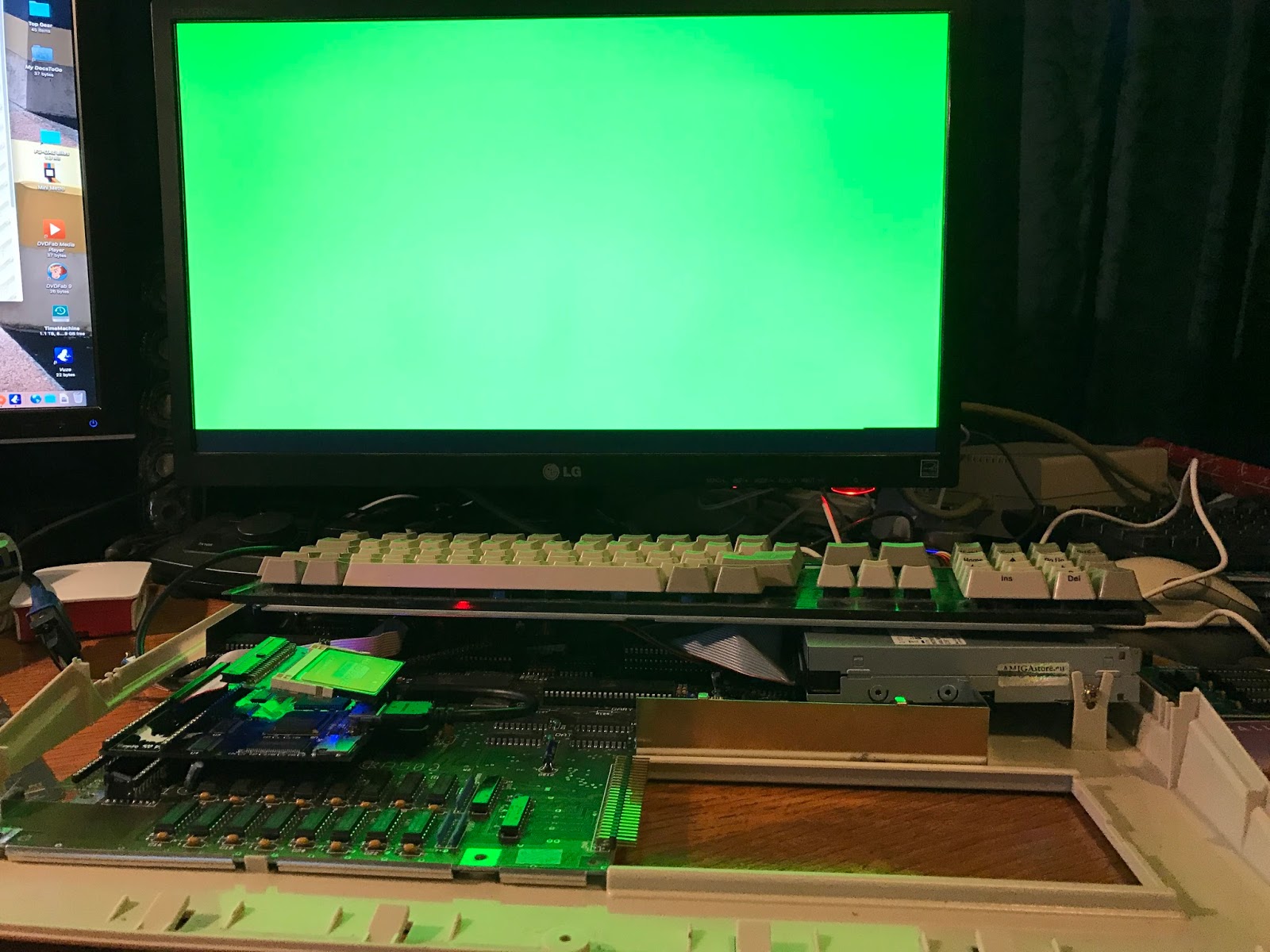

But, as I mentioned, I hit trouble quickly with the green screen issue on the Amiga 500. Even without the Vampire installed it was doing this. I tried removing and reseating the chips on the board but no change.
So with a degree of frustration I decided to change my plans and bring out my Amiga 2000!
I only just finished a build of my Amiga 2000 (owned since new in 1991), encompassing an 030-25Mhz, FPU, MegAChip 2MB Chip Mem, 8-Up 8MB fast memory card, 20GB IDE HD, Picasso II RTG card, Indivision ECS, A2065 network card, A2091 SCSI with SCSI CDROM, Buddha IDE and was preparing for the Bigram upgrade to 112MB fast memory in the future. I was quite happy with it!
Well, err, this all had to go so I could try out the Vampire on it. Was it worth undoing all the work and starting from scratch - oh yes!
So I pulled apart the Amiga 2000, removing all the cards.
You also should remove any kickstart rom from the Amiga - it is not needed with the Vampire installed as it has it's own Kickstart, and the original one can cause problems if left in place.
You can keep the MegAChip installed though if you have one installed - it works fine with the Vampire on my A2000.
Having finished the removal of cards, I then removed power supply/floppy drive tray to access the 68000 processor socket.

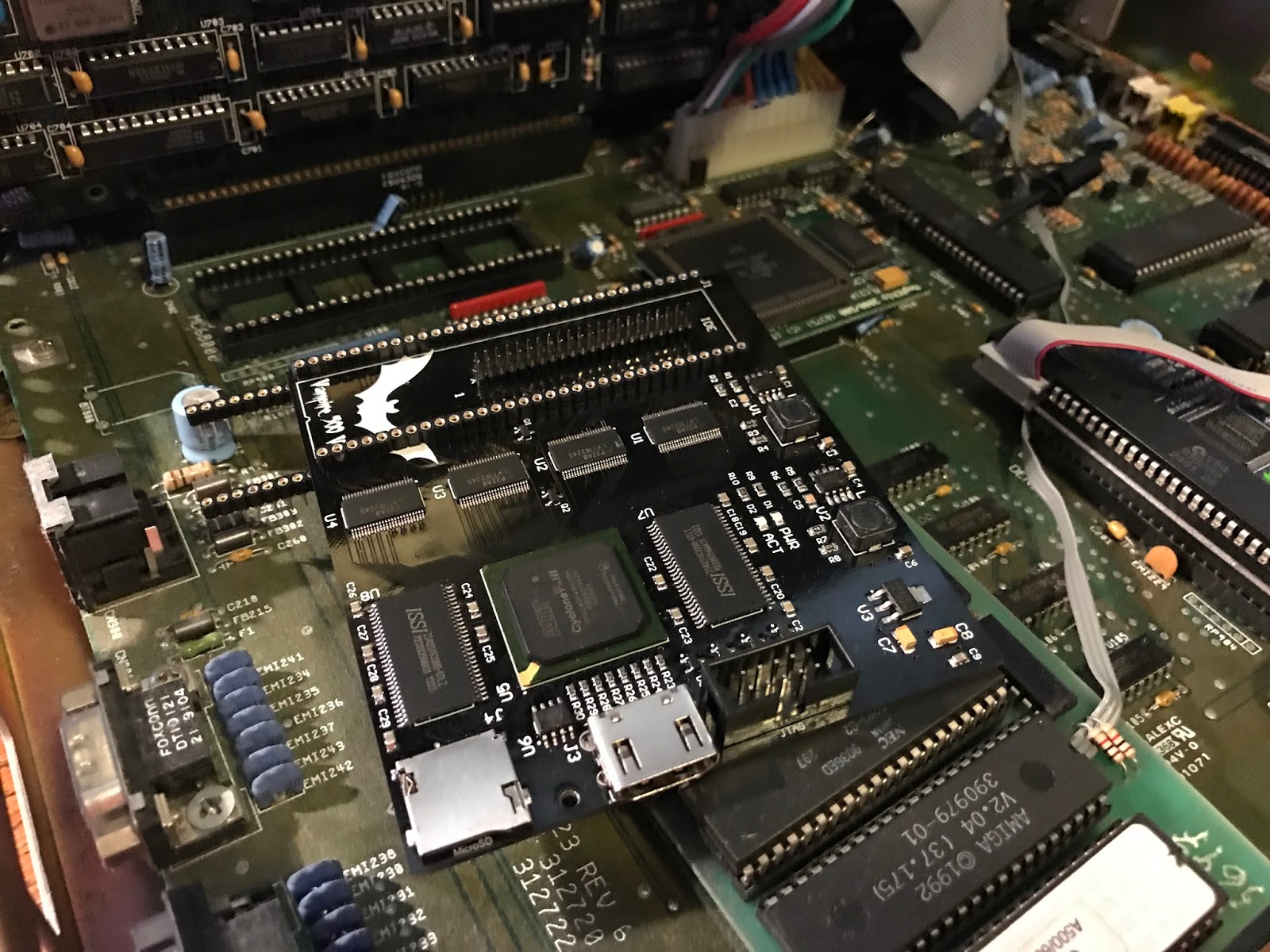

Here is the Vampire, ready for installation into the 68000 processor socket:
As you can see I have a Kickstart rom switcher installed on my Amiga 2000, which allows me to switch between Kickstart 1.3/2.0/3.1 with a switch on the back of the Amiga 2000.

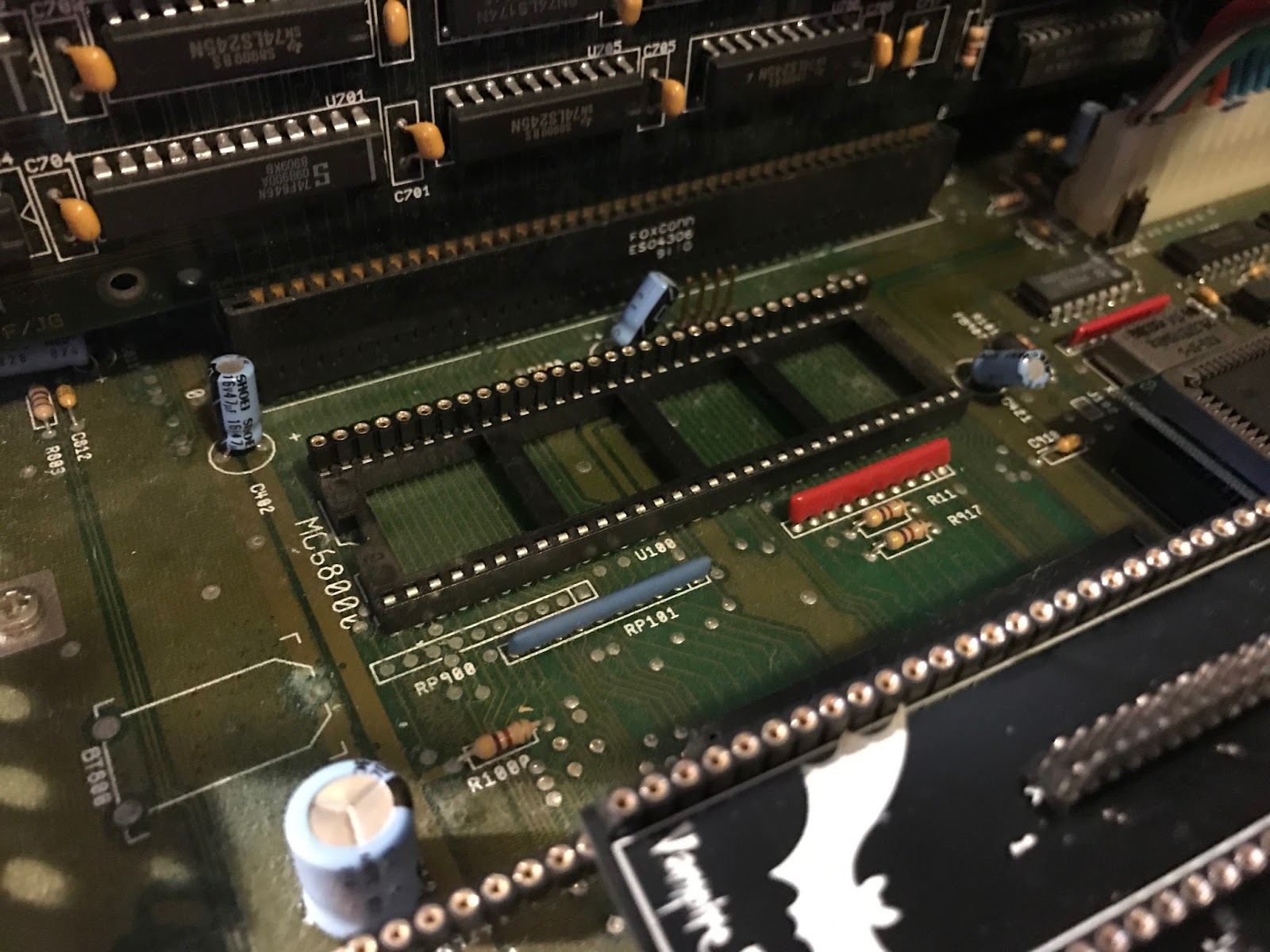

As mentioned I had to remove this in order to install the Vampire. Also note that unlike the Amiga 500, the Amiga 2000 does not have any riser installed on the 68000 socket so you need the ones that came with the Vampire to ensure it fits over the kickstart rom socket (which when empty only needs one riser to clear).
Here is the Vampire looking through from the other side of the Amiga 2000 with the power supply/disk drive tray in place to make sure it cleared the Vampire with a CF card attached. It does - just.

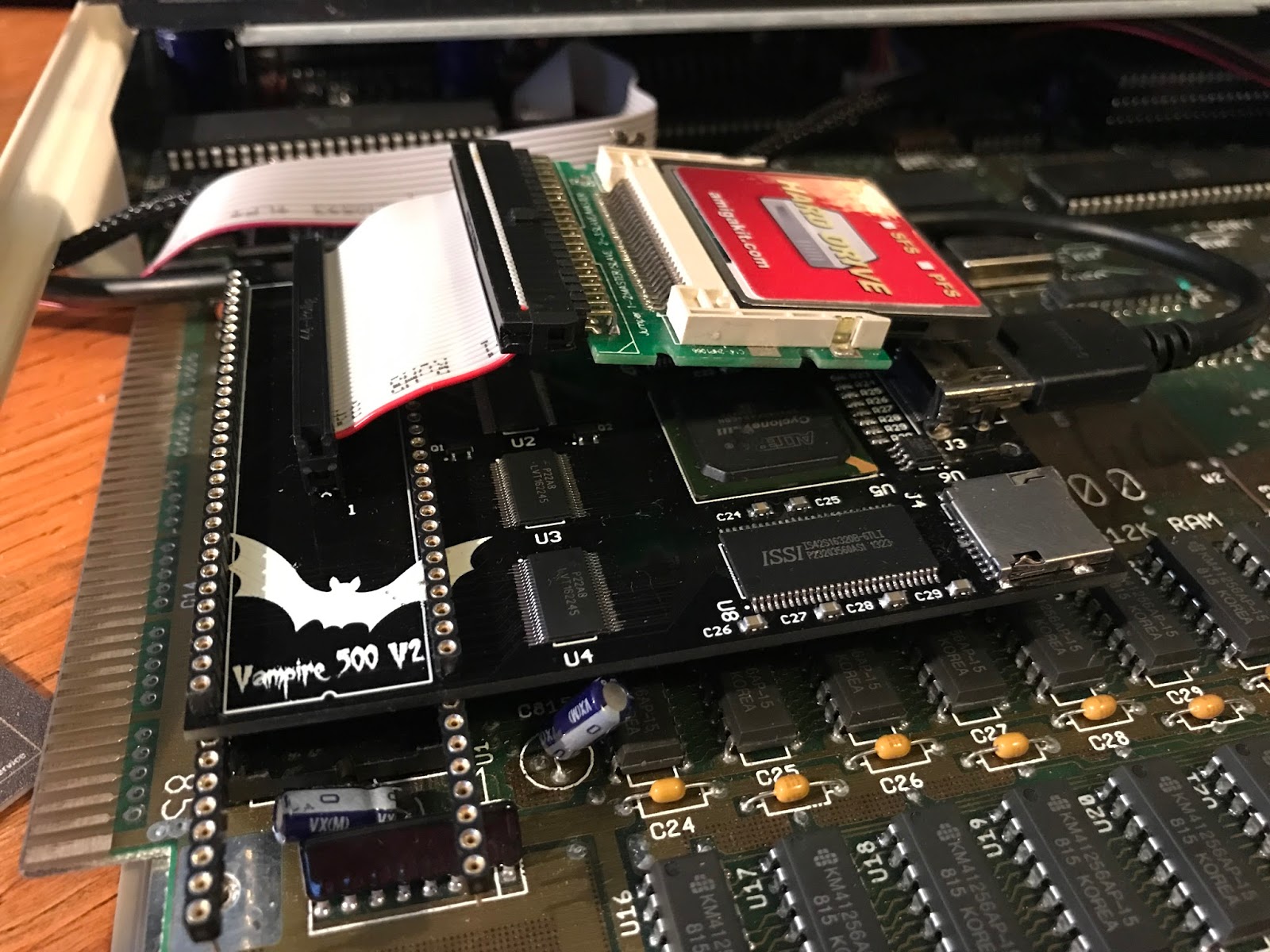

Here is the Vampire installation with the CF Card attached to the Vampire onboard IDE port, and HDMI cable running from the HDMI port through the now empty CPU slot on the Amiga 2000 to connect to a HDMI screen.
As a reminder I did remove the kickstart rom switcher before using the system - unfortunately I took the photo before I did that, sorry!
At this point I want to send a huge thank you to the kinds folks on the Apollo-Team IRC channel who helped me through this installation and provided many helpful tips and tricks to get me up and running! There was no documentation included with the Vampire, so that is one of the reasons for this blog post too - to help other people who want to get their Vampire 500 V2 up and running quickly.
Thanks guys, you saved me a lot of guesswork.
On first power on I get the updated Kickstart 3.10 ROM v45.020 insert disk screen - this output is via the Indivision ECS:
This is another point to remember - the RTG SAGA driver that support the Vampire HDMI output is only available from the Workbench. For native Amiga output like games, demos, early start menu, etc, these use the default Amiga display output. So if you are getting one of these cards definitely keep your Indivision ECS installed as you will still need it!
I decided to use one display with both a HDMI and VGA input, allowing me to switch between the two cards without having to have two screens.
As mentioned, the CF card I had installed was from my Amiga 1200, which has an AmiKit Real 8 installation on it. I decided to start the build from scratch again, so I began by copying the AmigaOS 3.9 files and Boing Ball updates onto the CF Card spare Data2 partition by connecting it to my AmigaOne X1000 via USB Card reader first.

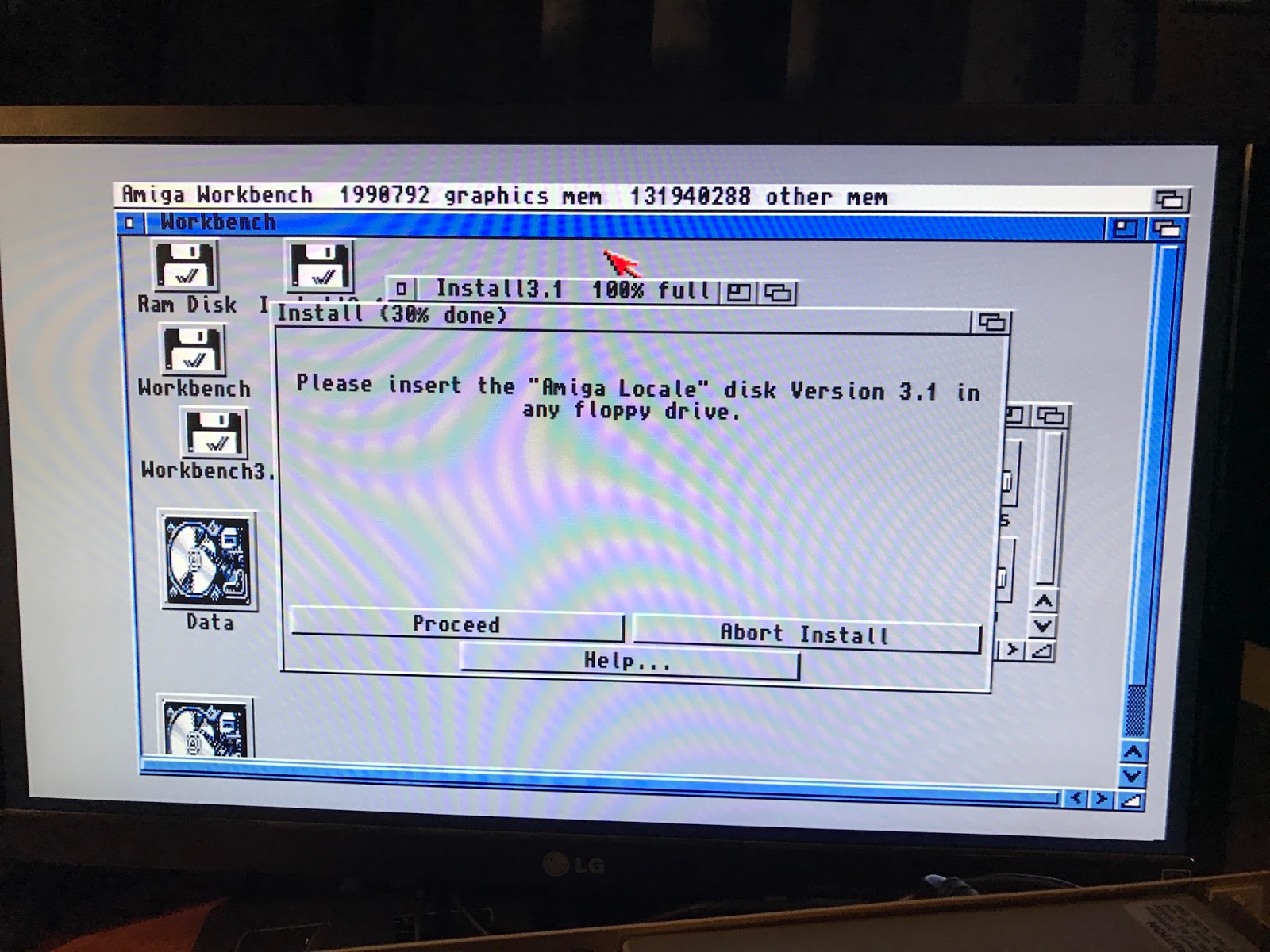

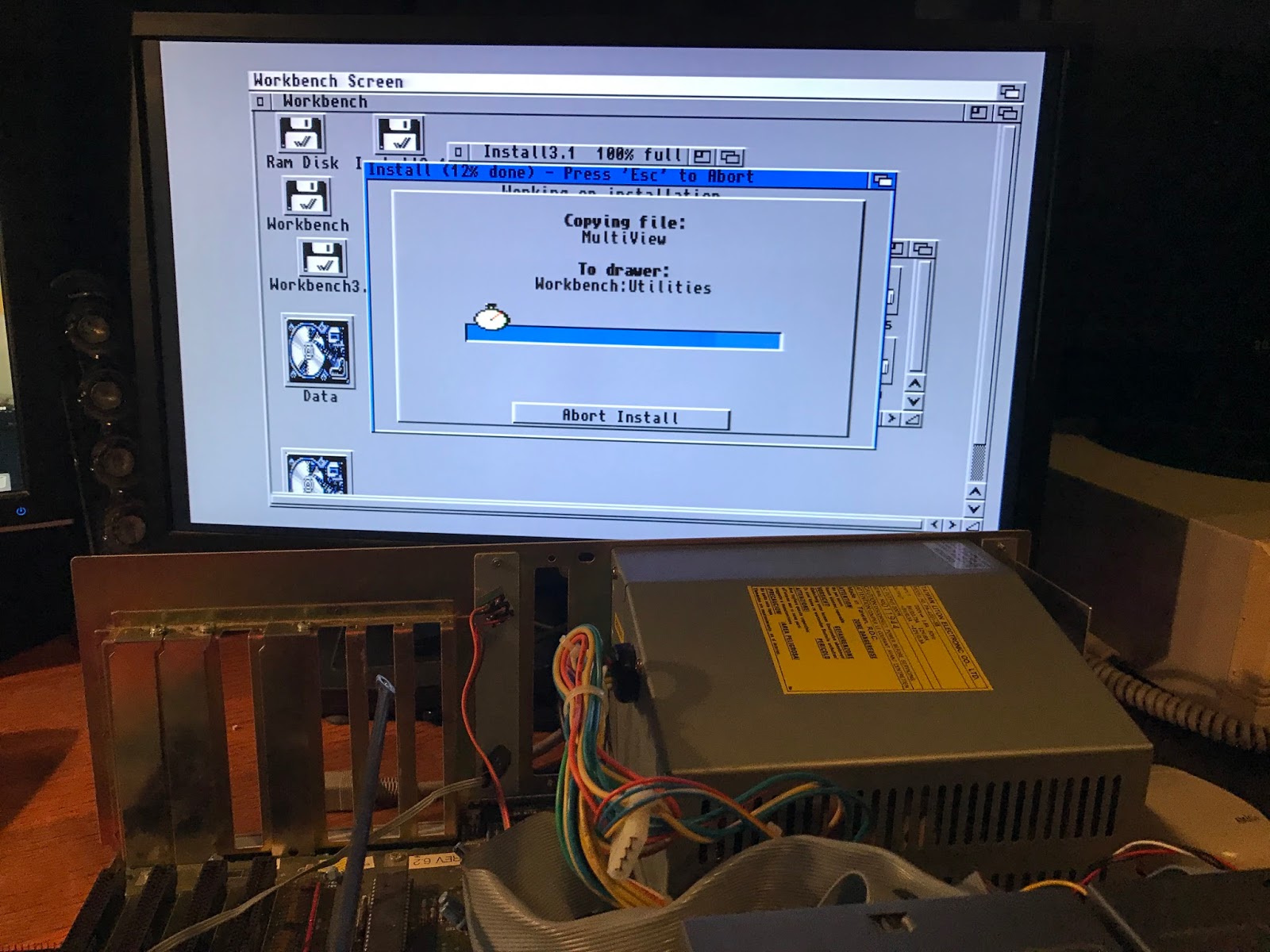

I then connected the CF back into the Amiga 2000 and booted off a Workbench 3.1 install floppy disk, wiping the System partition and reinstalling Workbench 3.1 on it - and yes I am aware I can install it directly from the X1000 too onto the CF but I decided to do it the old fashion way:
You'll note that once AmigaOS 3.9 Boing Bag 2 is installed it is necessary to patch the "AmigaOS ROM Update" to get it working with the Vampire. The necessary patch file is included in the archive, but spatch (needed to patch the file) needs to be downloaded from Aminet. More on that later.

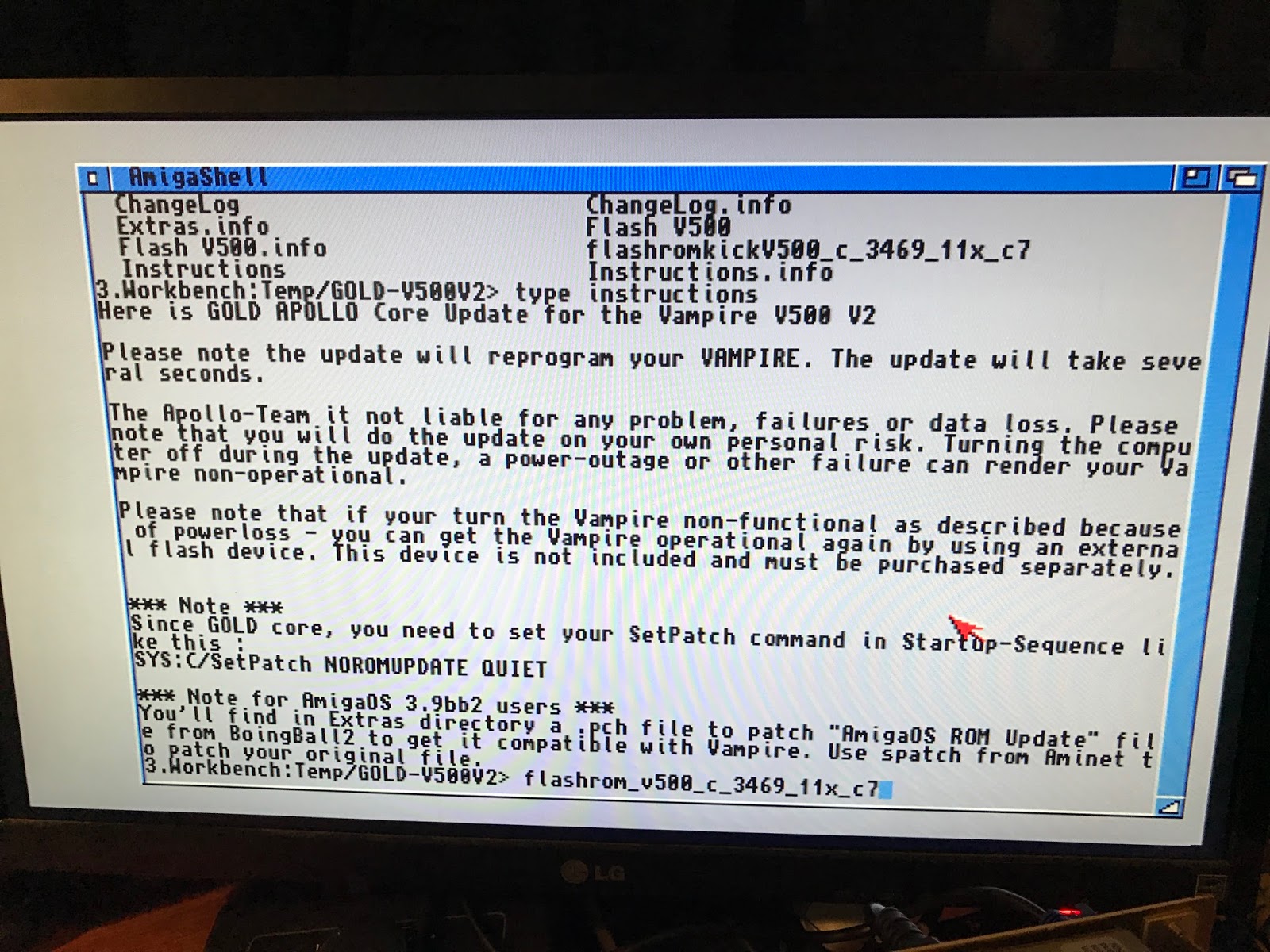

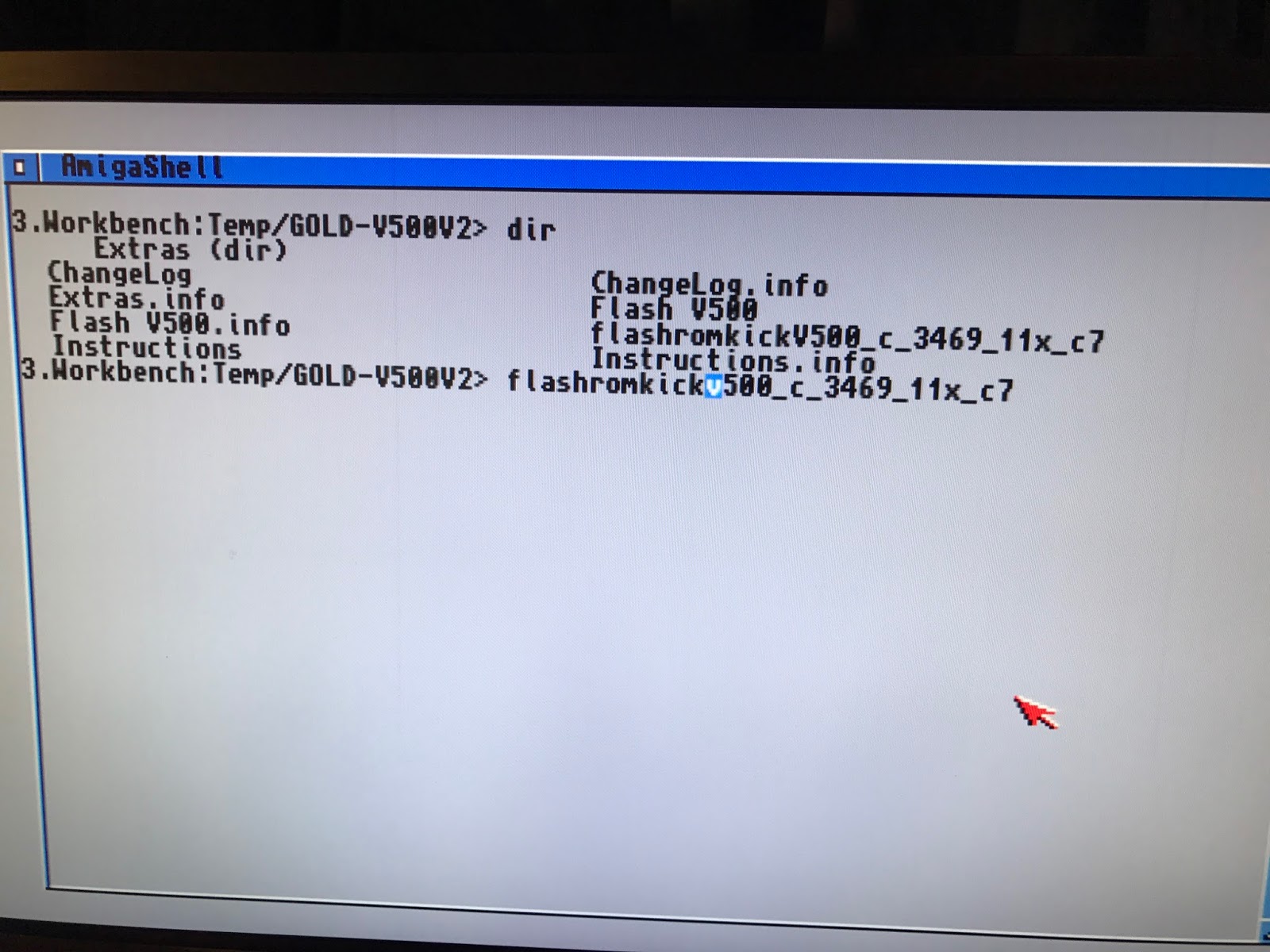

For now though, I wanted to patch the Vampire 500 V2 with the latest core, which as mentioned can be done from a PC with the JTAG connector to USB, or with the Amiga itself. I chose to use the Amiga, which as it turns out is very easy to do from the shell, as below:

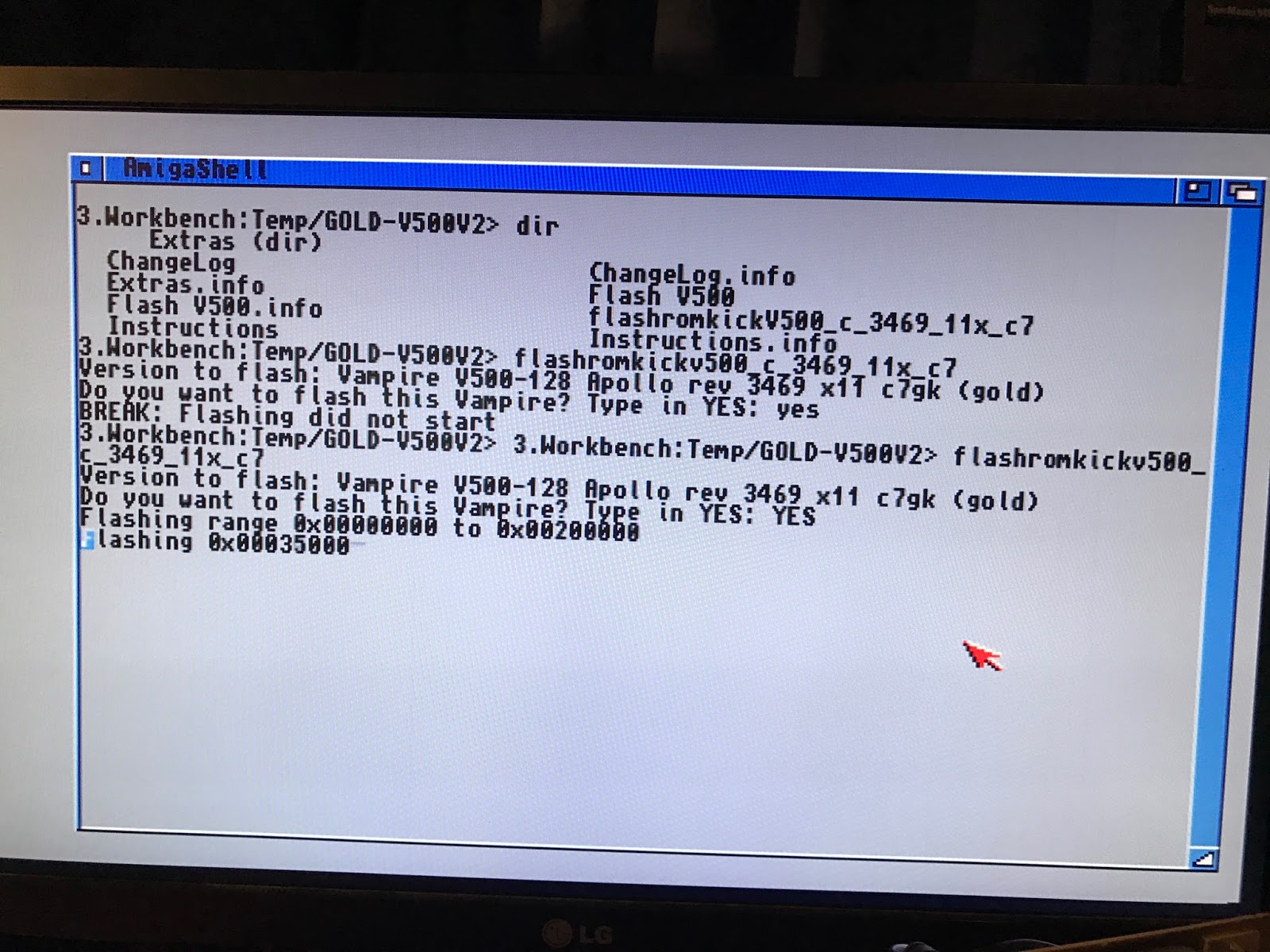

It then asks if you are sure you want to flash the Vampire - note that you need to type uppercase YES to this prompt or it won't do it!
It then goes off and flashes the Vampire - do not reboot or interrupt this process:
With the flash complete I can verify the version of the firmware installed using the VampireTool included in the SAGA RTG driver archive (also available from the Apollo Accelerators website):

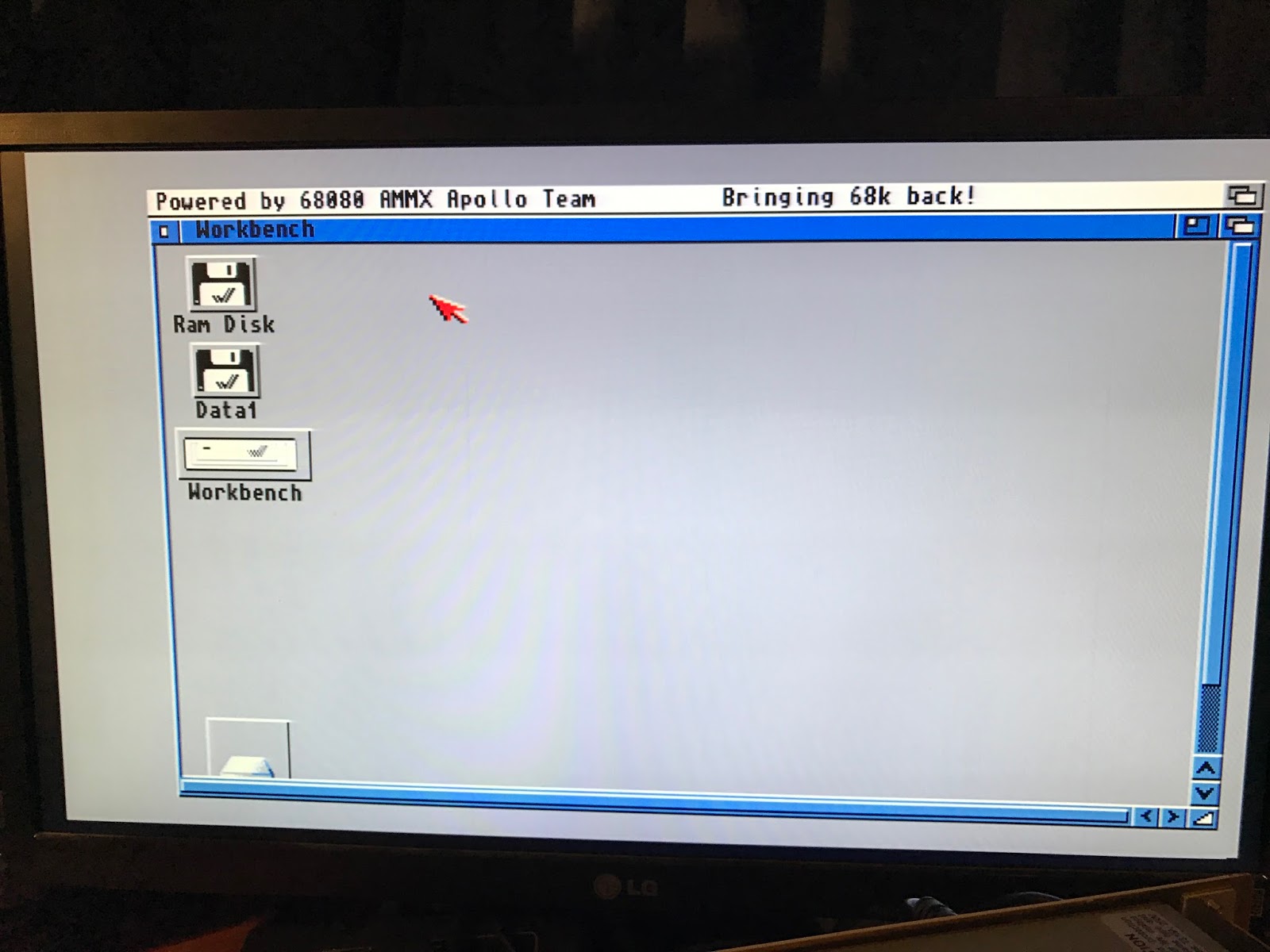

With a reboot we can see the Apollo 68080 Gold Edition Boot screen on the HDMI output, along with an Amiga 1000 boot sound! Nice touch :-)

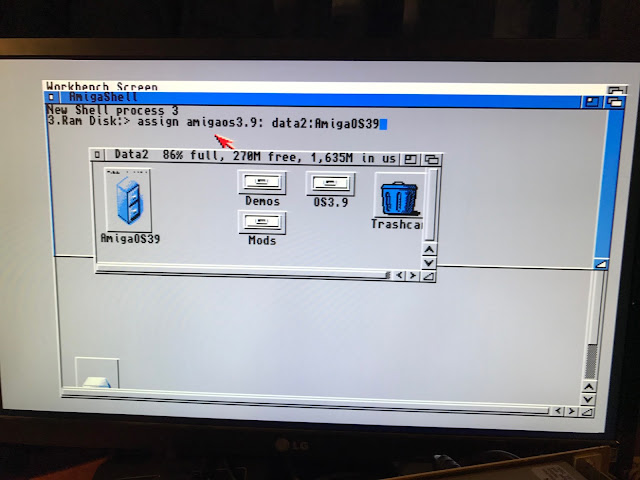

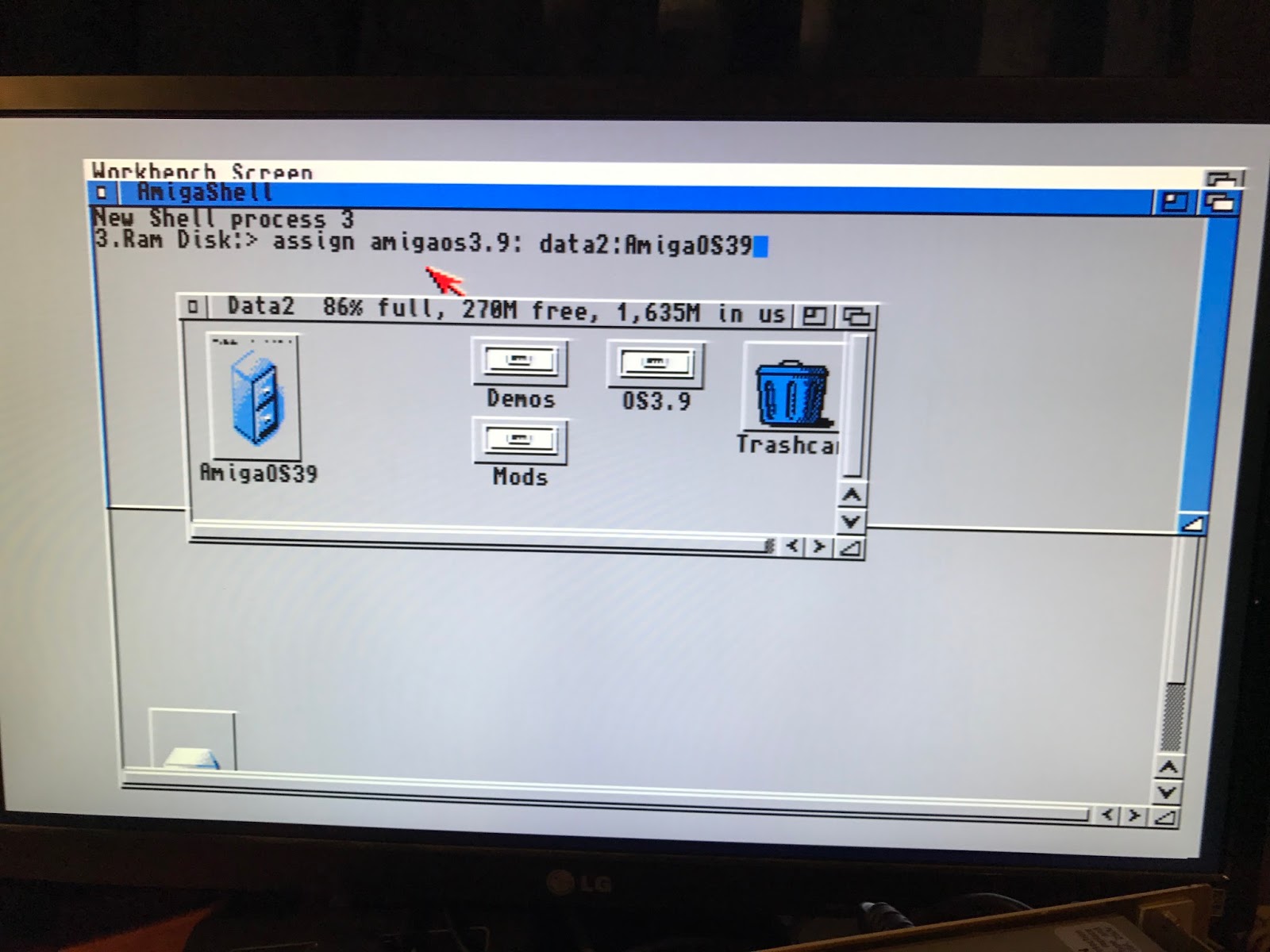

With that done, I then moved onto the AmigaOS 3.9 installation work. As usual since I copied the AmigaOS3.9 source files to a drawer on the hard disk, I need to assign AmigaOS3.9: to that drawer to fool the installer that the CD is inserted via the Shell.
This trick is also needed before installing Boing Bag 1 and 2, which check for the CD also as part of the installation:

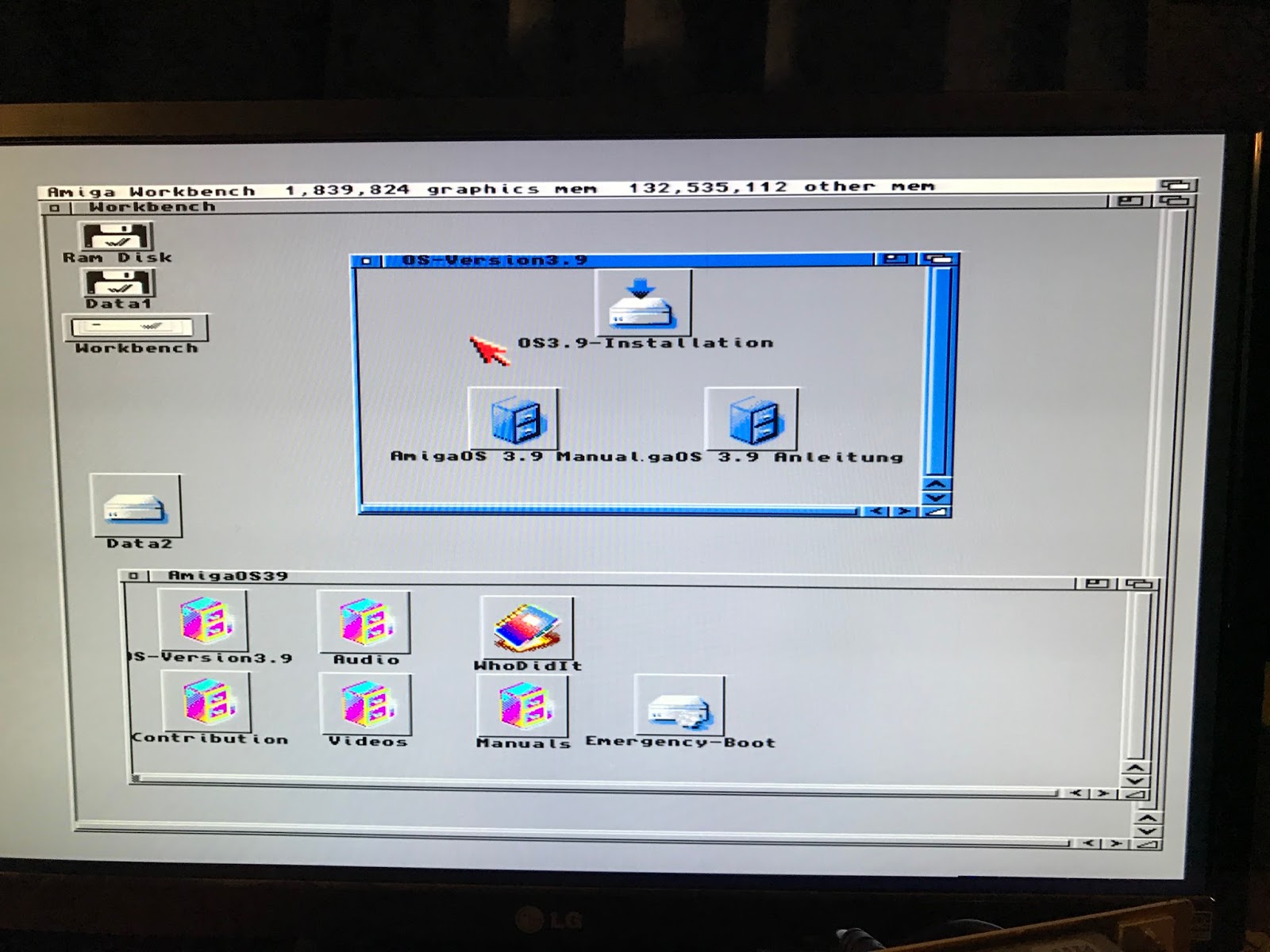

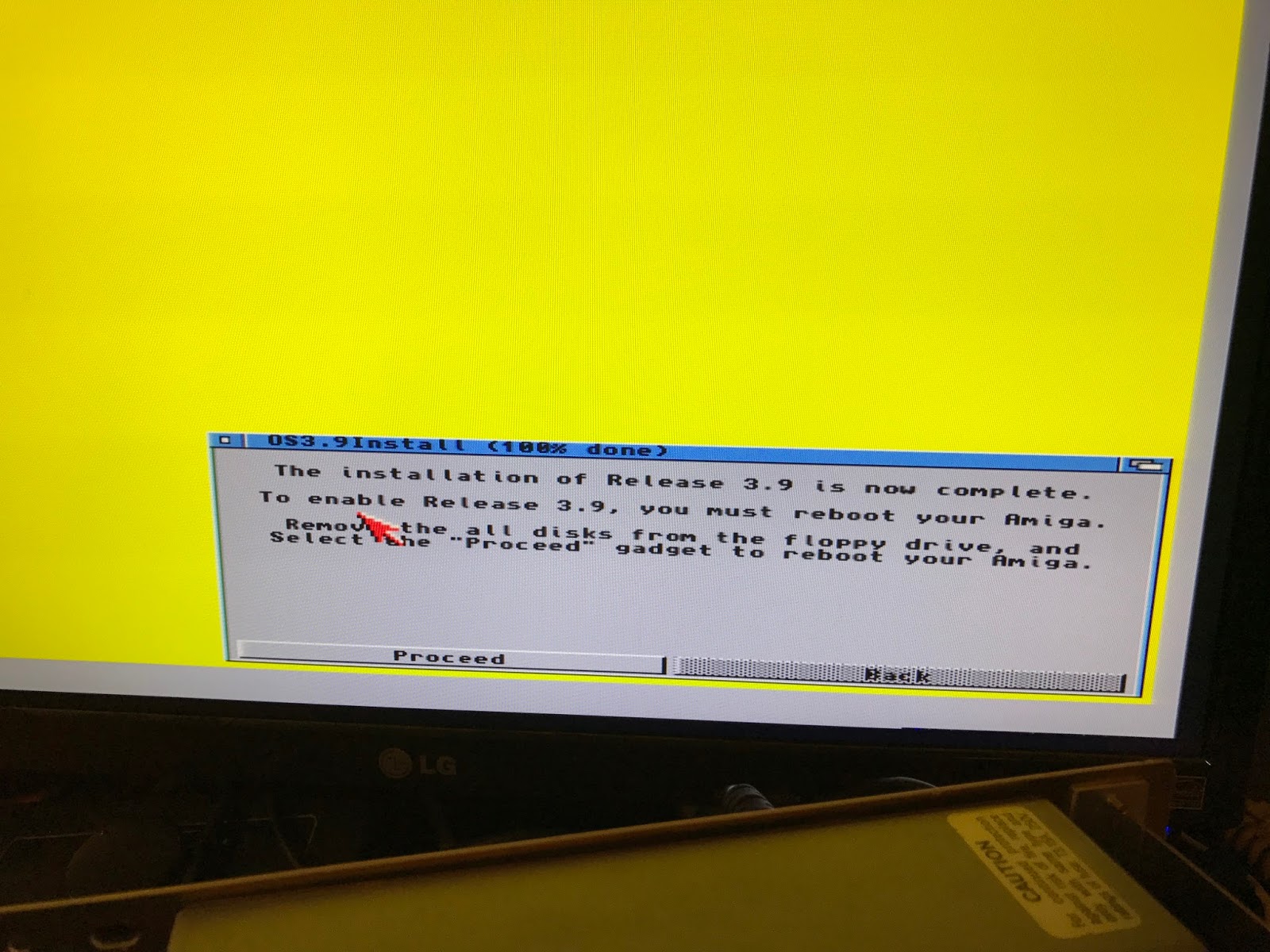

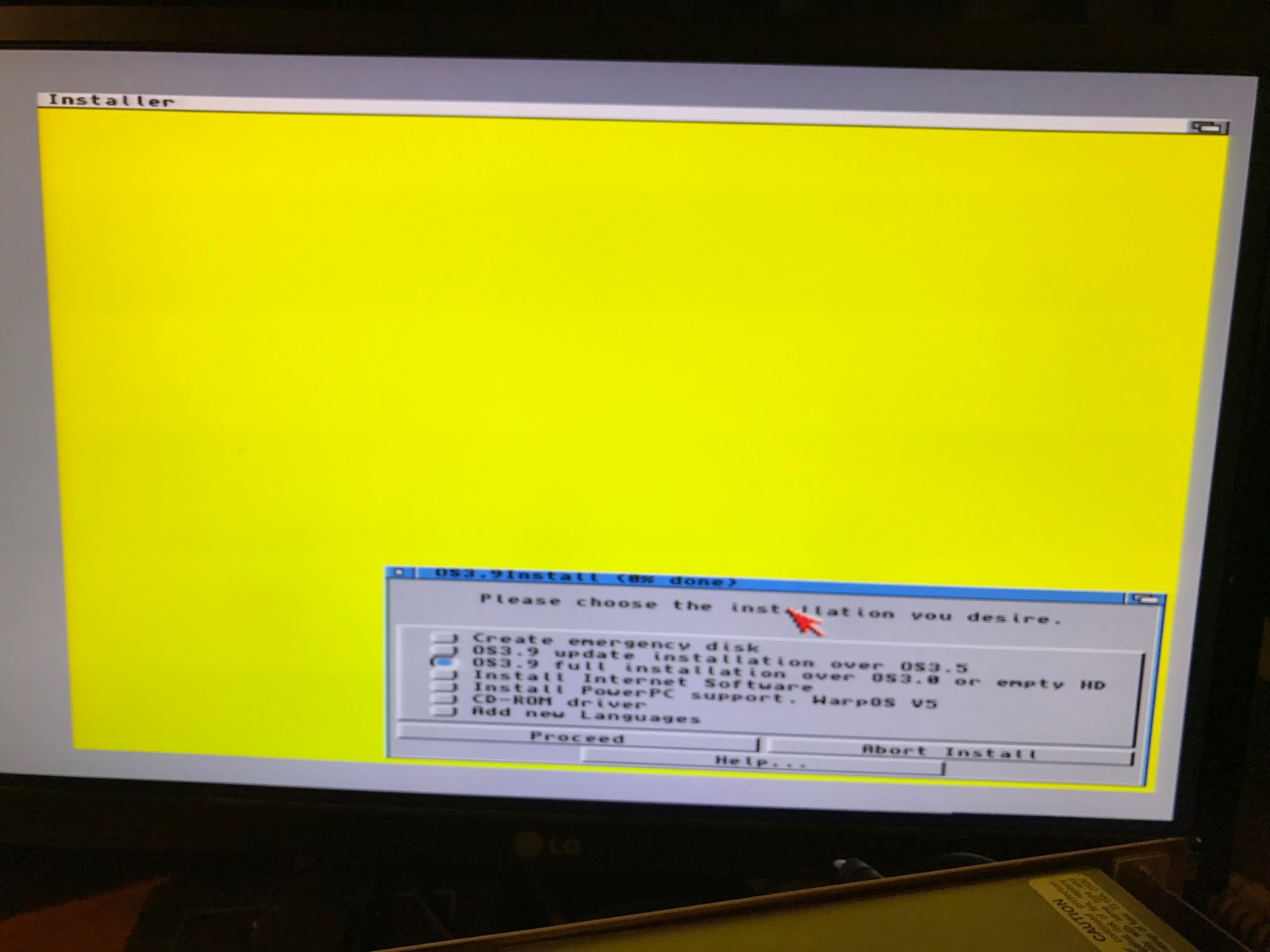

So now I get the install underway - I have covered this install process many times on this blog so I will gloss over most of it:
The observant will notice in the screen shots of the install above and below I upped the screen resolution to High Res laced with 16 colours. Install is all done:
Here is the vanilla AmigaOS 3.9 system, ready for more setup work:

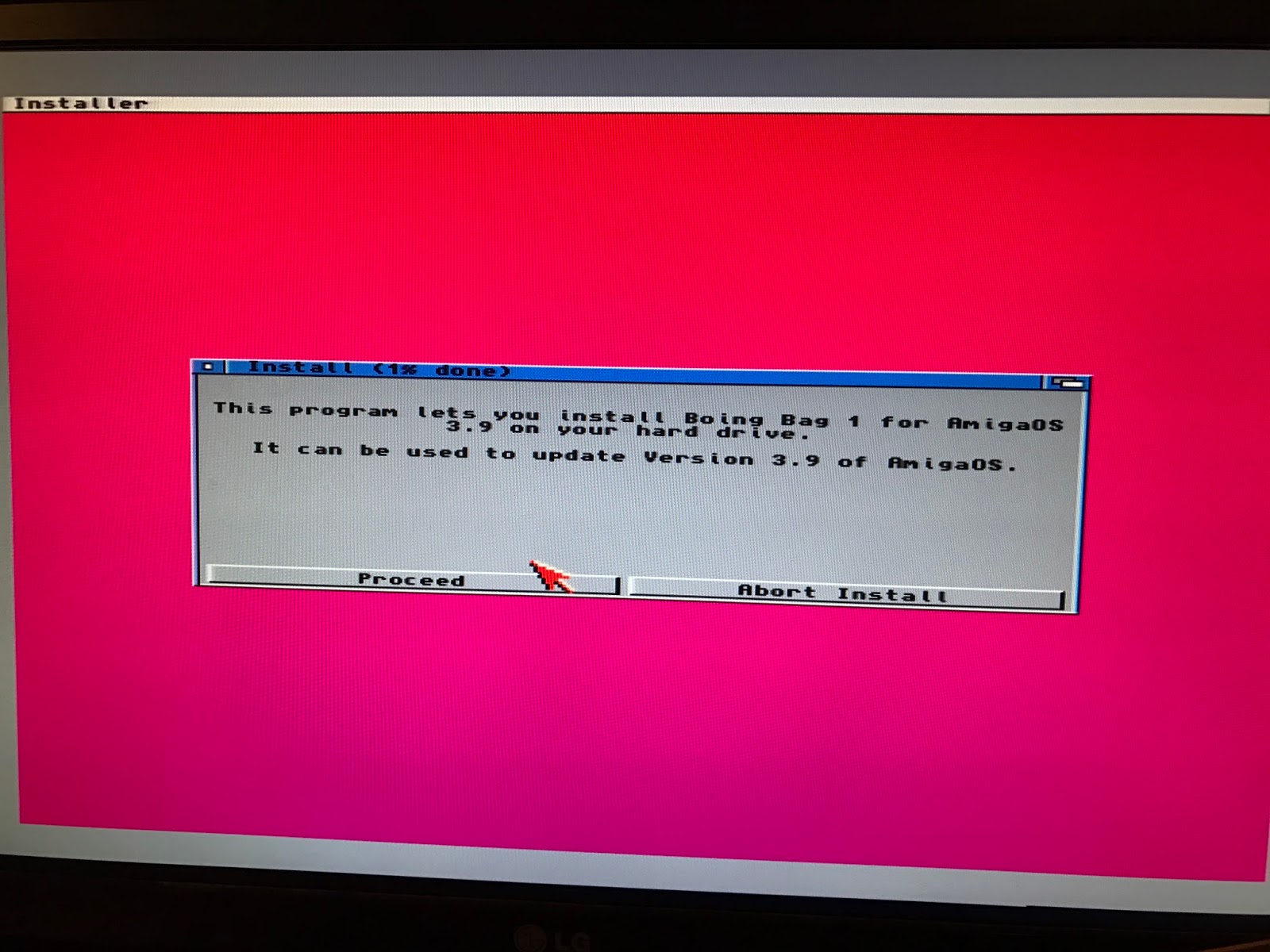

I move onto Boing Bags 1 and 2, each requiring a reboot after completion.
With that done, things are starting to take shape. Remember that after Boing Bag 2 is installed (but before you reboot) you need to modify the S:Startup-Sequence to add in the NOROMUPDATE QUIET to the setpatch line, and patch the "AmigaOS ROM Update" file (located in DEVS:) using spatch and the .pch file from the Apollo Vampire 500 V2 Gold Core archive.
The format of the spatch command is (minus the < >) :
spatch -o<output filename> -p<.pch patch file> <source file>
Then backup the old file and copy the new one over the top.

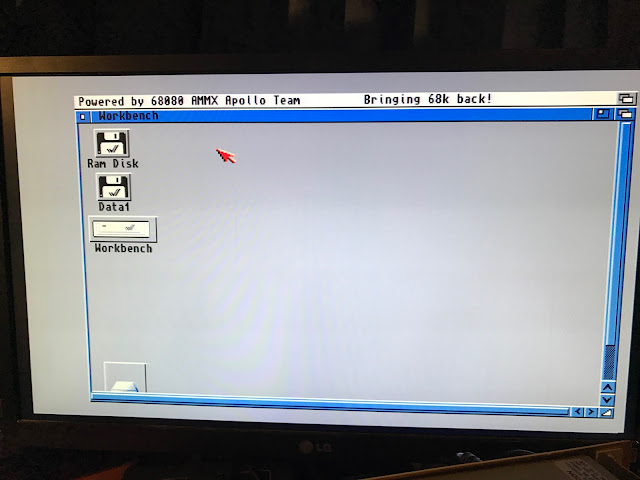

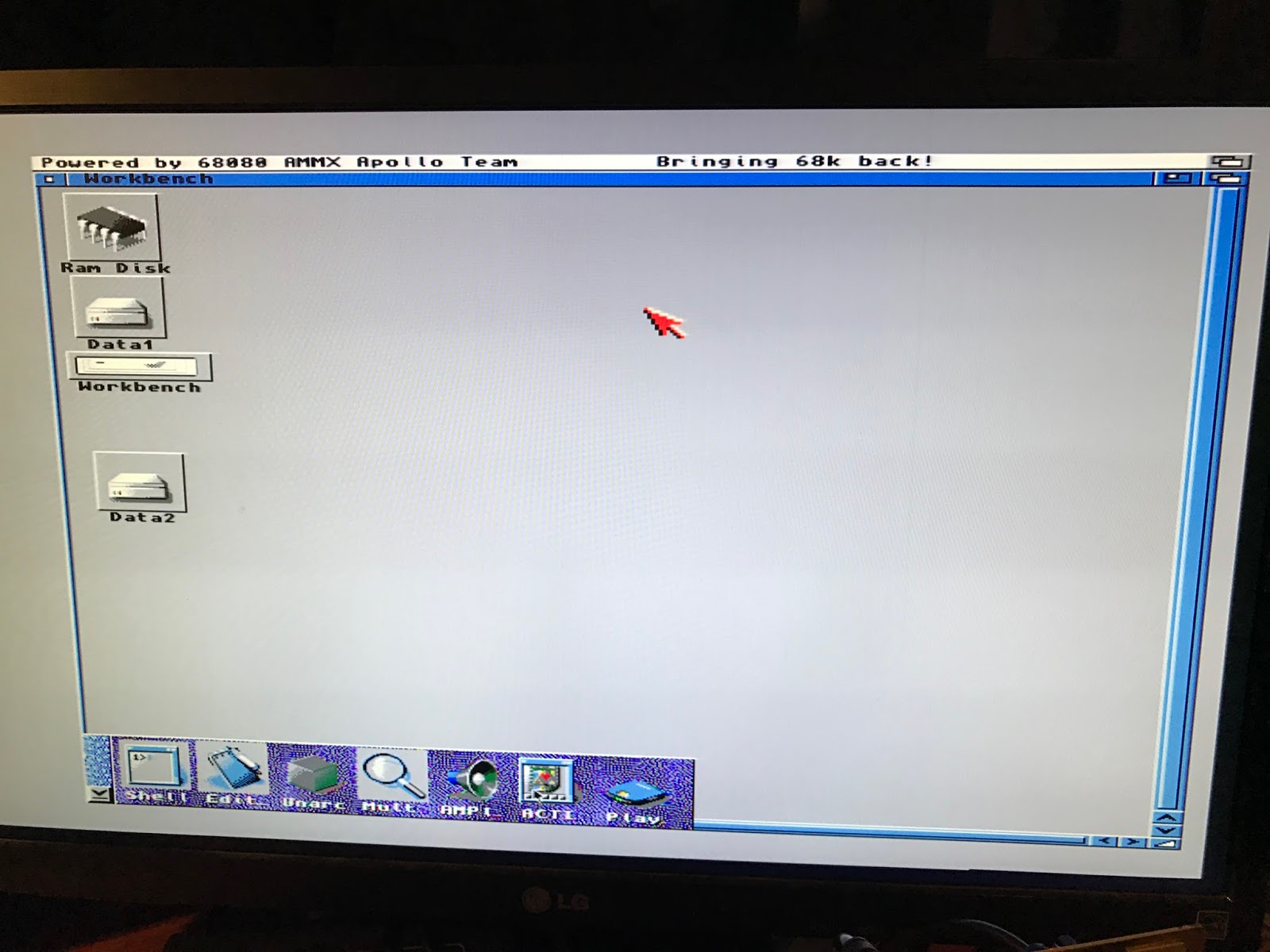

With that done, a reboot is done and things come back up so all good:

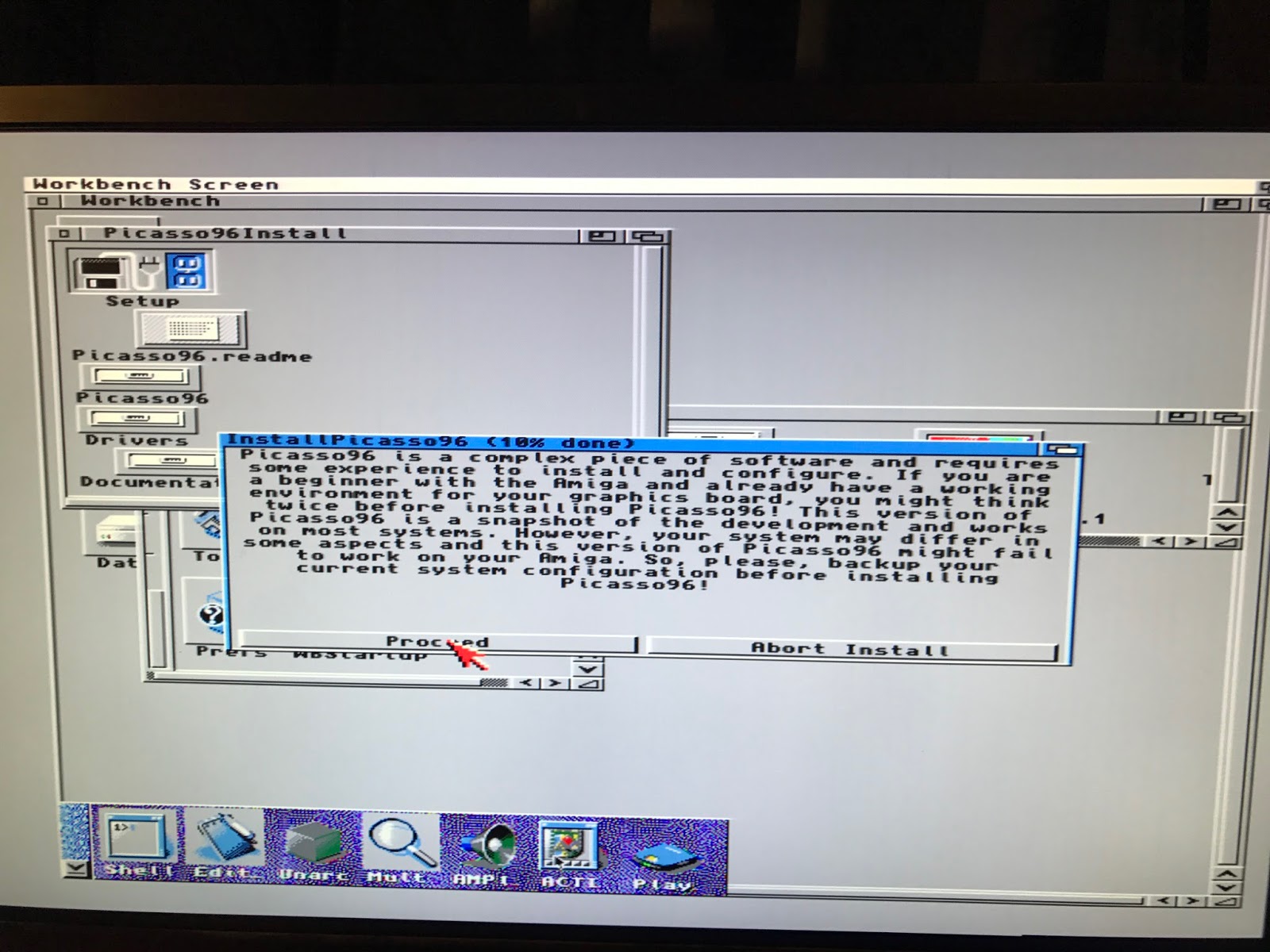

The next step is to install the SAGA RTG drivers along with Picasso96, which will enable the HDMI output from the Workbench - start with Picasso 96 first, downloaded from Aminet and copied to the CF card using the AmigaOne X1000:

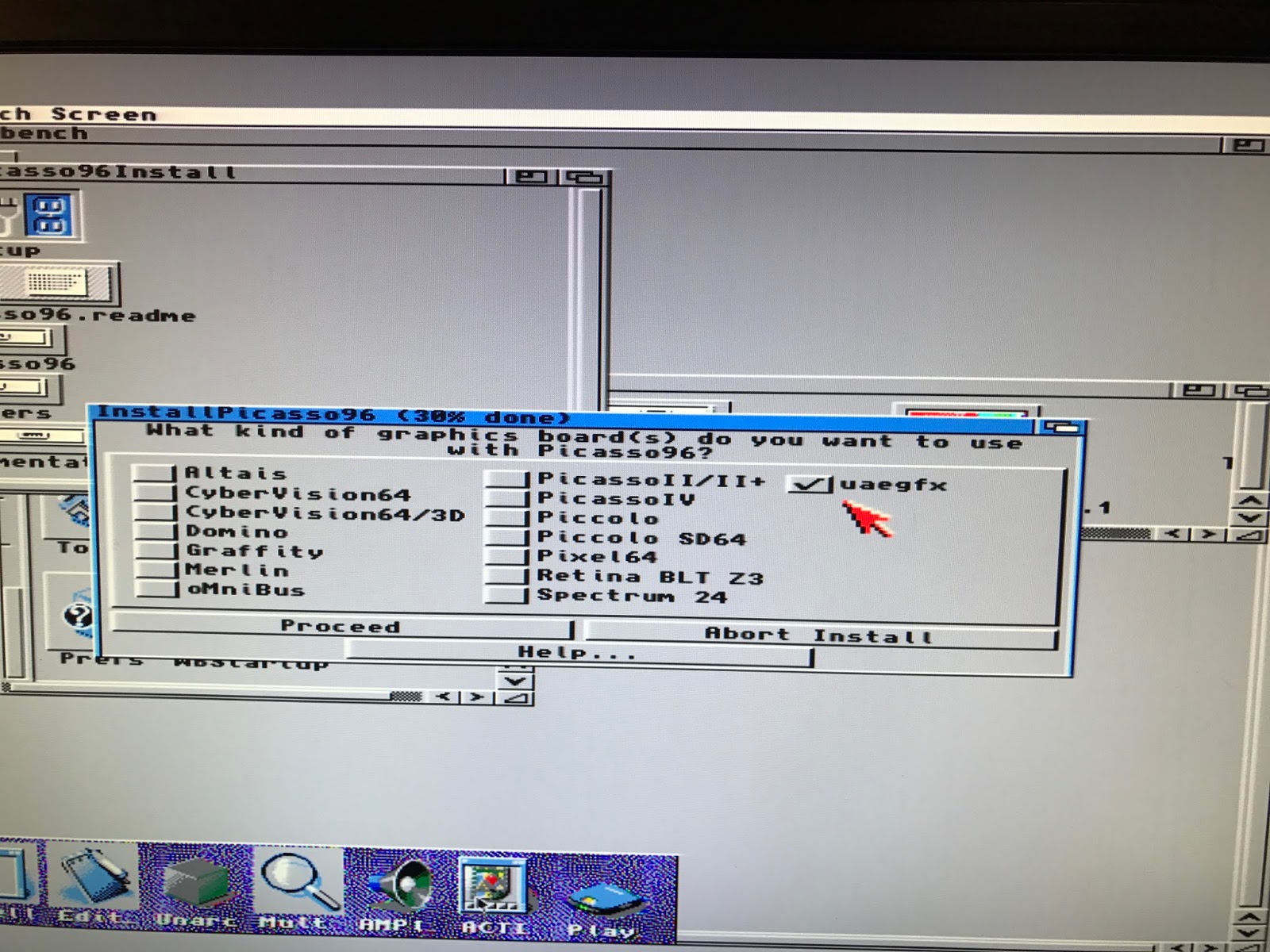

I won't cover the Picasso96 install in much detail except that you need to select the uaegfx driver from the list to install. The rest is really follow the prompts:
At the end of this you will need to reboot to have the uaegfx driver available for configuration in Picasso96mode prefs later on.

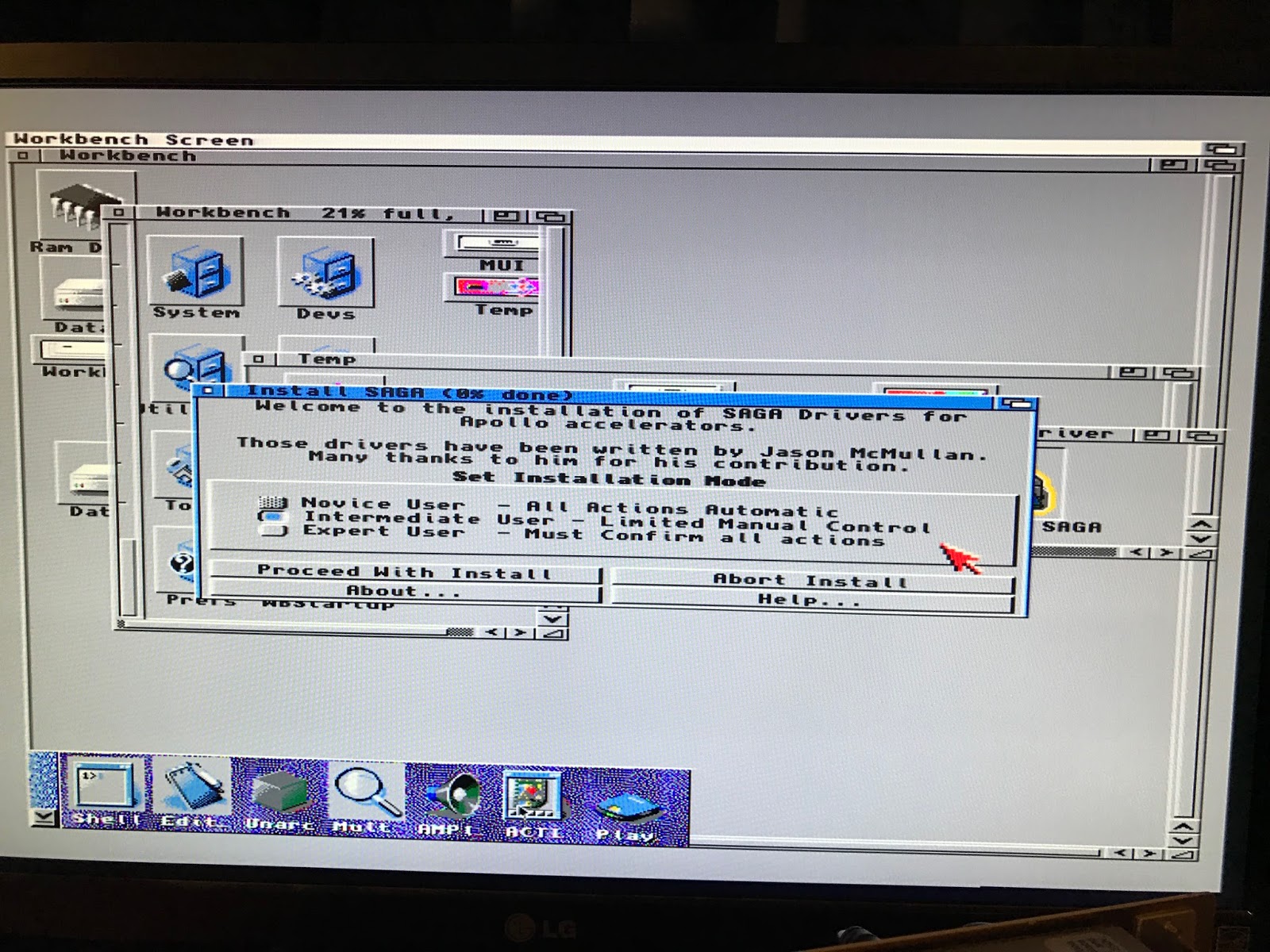

With the reboot done I then installed the SAGA RTG drivers from the installation archive, which has an easy to follow installer:

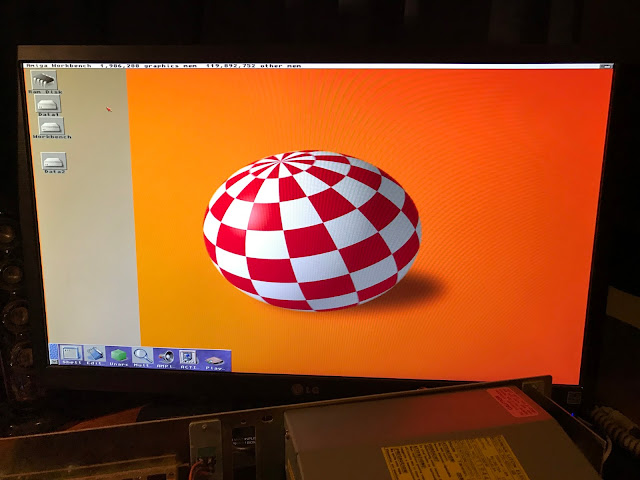

With this completed, and another reboot, you can then start to use the 4:3 resolution screen modes via HDMI - in my case I found that the 640x480, 800x600 and 1024x768 modes work out of the box simply by selecting them in the Screenmode prefs. I chose 1024x768 initially.
However, of course we really want to use the 16:9 screenmodes (especially 720p) with our wide screen HDMI screens! To do this we need to do some setting tweaking in Picasso96mode, available in the Prefs drawer. Every screen is different so note that this tweaking needs to be done every time you change the screen you are using - what works well for one screen does not work for another in my experience - it may not display or you may get lots of lines and static on the display until this is fixed.

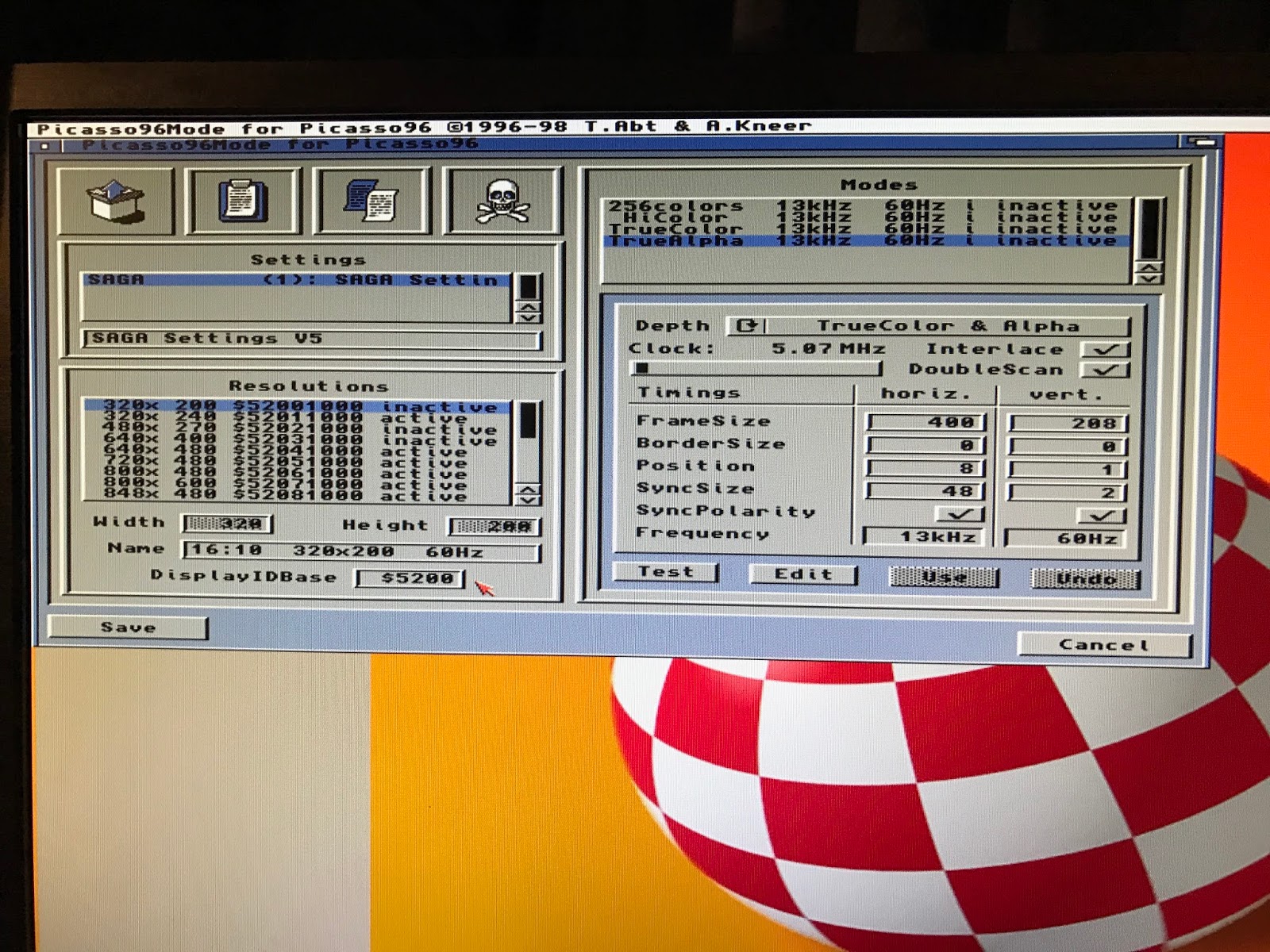

In any case, you should make the 320x200, 480x270 and 640x400 resolution inactive as per below:
This then forces the driver to use the 640x480 screen mode for these lower modes, which is more compatible with modern screens.

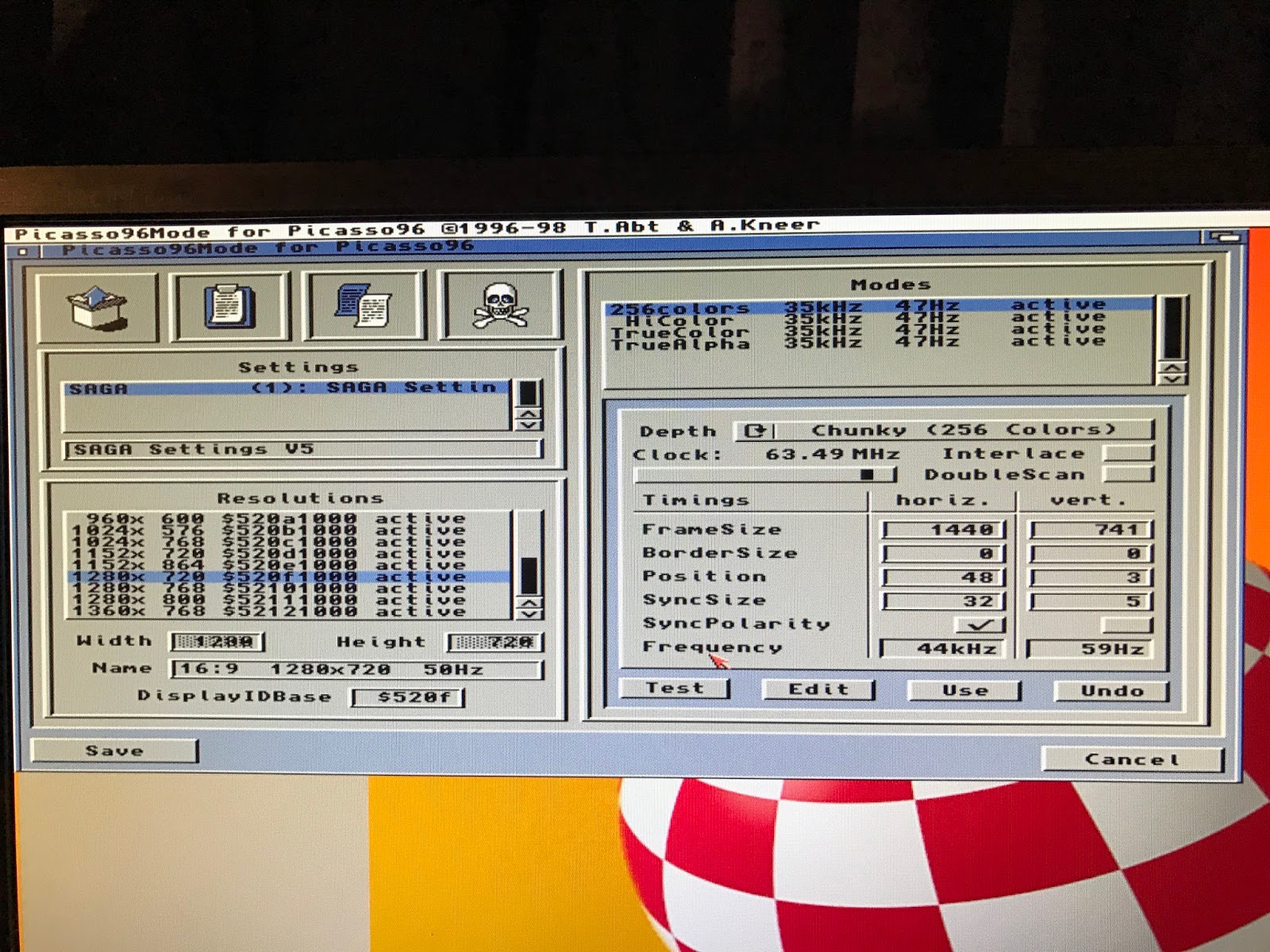

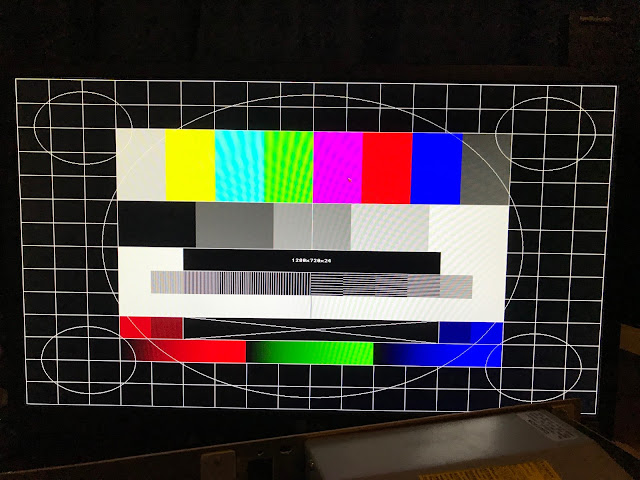

For the 720p screen mode (1280x720), I then increased the Clock (Mhz) for each colour mode (the right side of the screen) from 50 to around 63.49 and slowly muck around with the slider with small decreases until the display shows perfectly without any drop outs or lines on the screen - use the Test button to try it until you get a Clock Mhz setting that works for you.
If it doesn't display then press escape key to get back to the PicassoMode config screen to try other settings. Eventually though, you'll get the optimum setting:

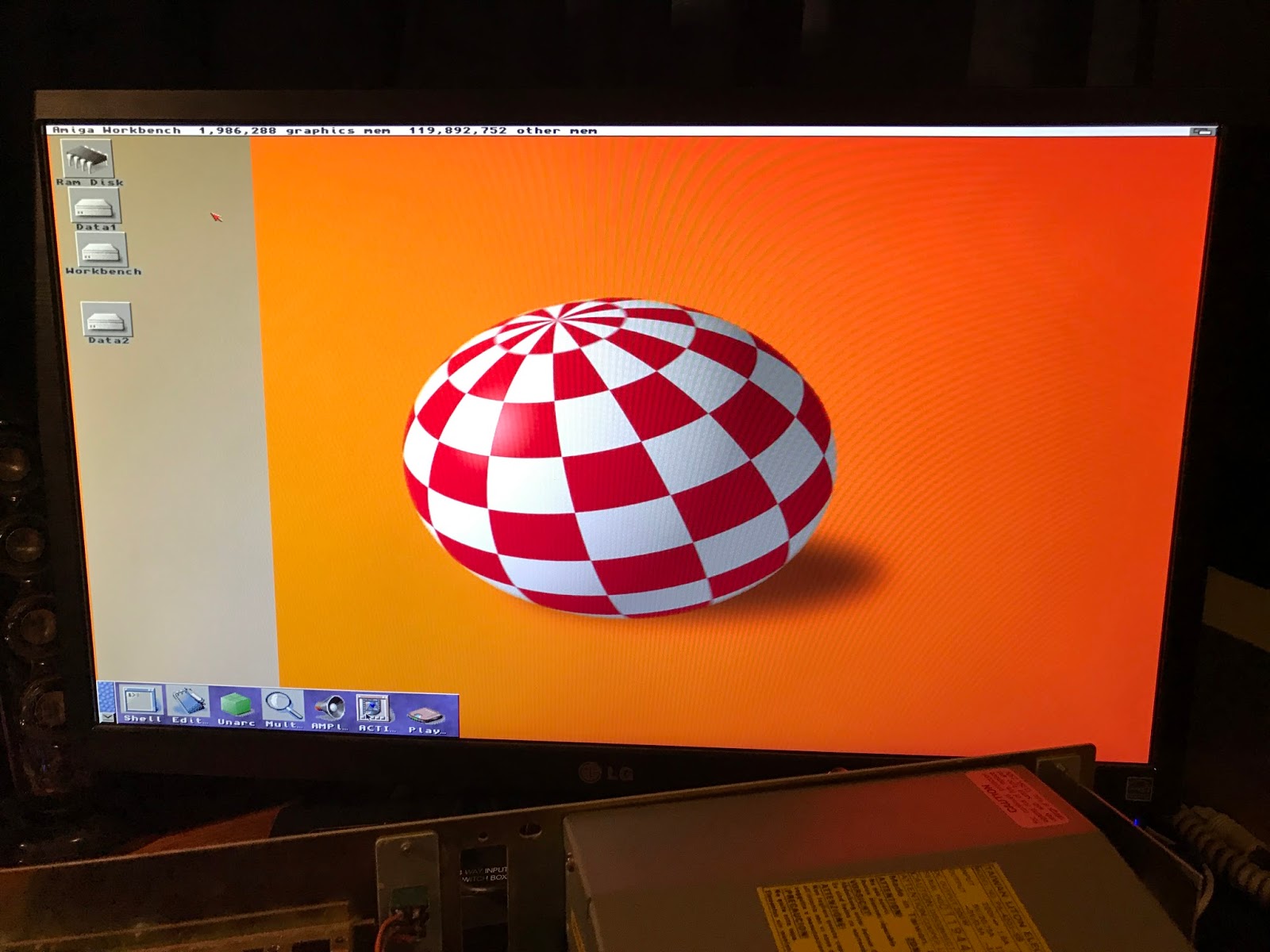

And here is the 720p display in all it's glory, outputting on my 24" LG TFT screen via HDMI from the Vampire - how awesome!
As mentioned, you need to tweak these settings if you change screens, which I did almost immediately as I wanted to try out my brand new 32" LG IPS LED monitor I bought to use on the AmigaOne X1000.

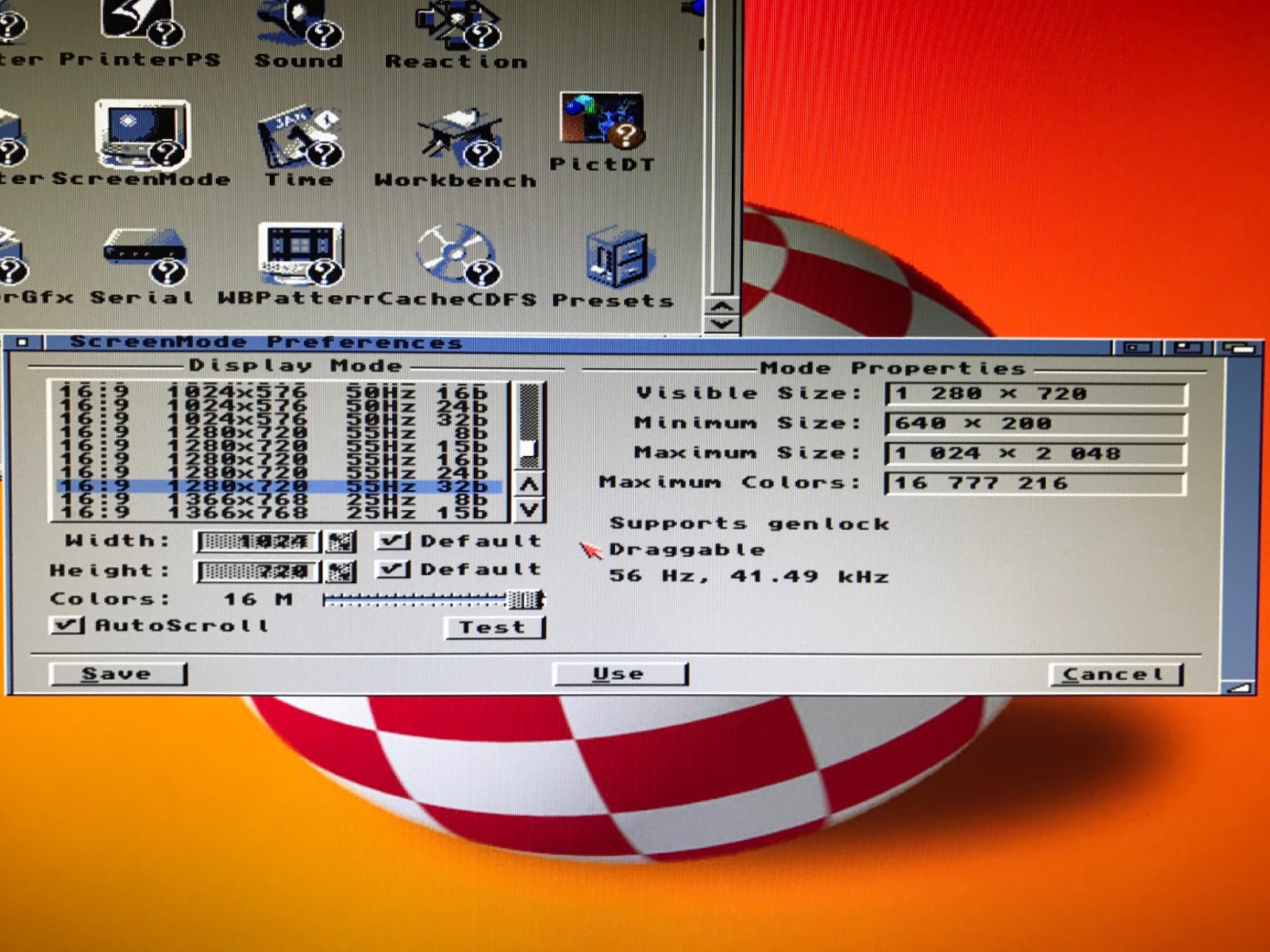

Here are the settings tweaks I did to get it working for that screen - just a small decrease in Clock to 55Hz frequency vertical, instead of 59Hz for the 24" screen:

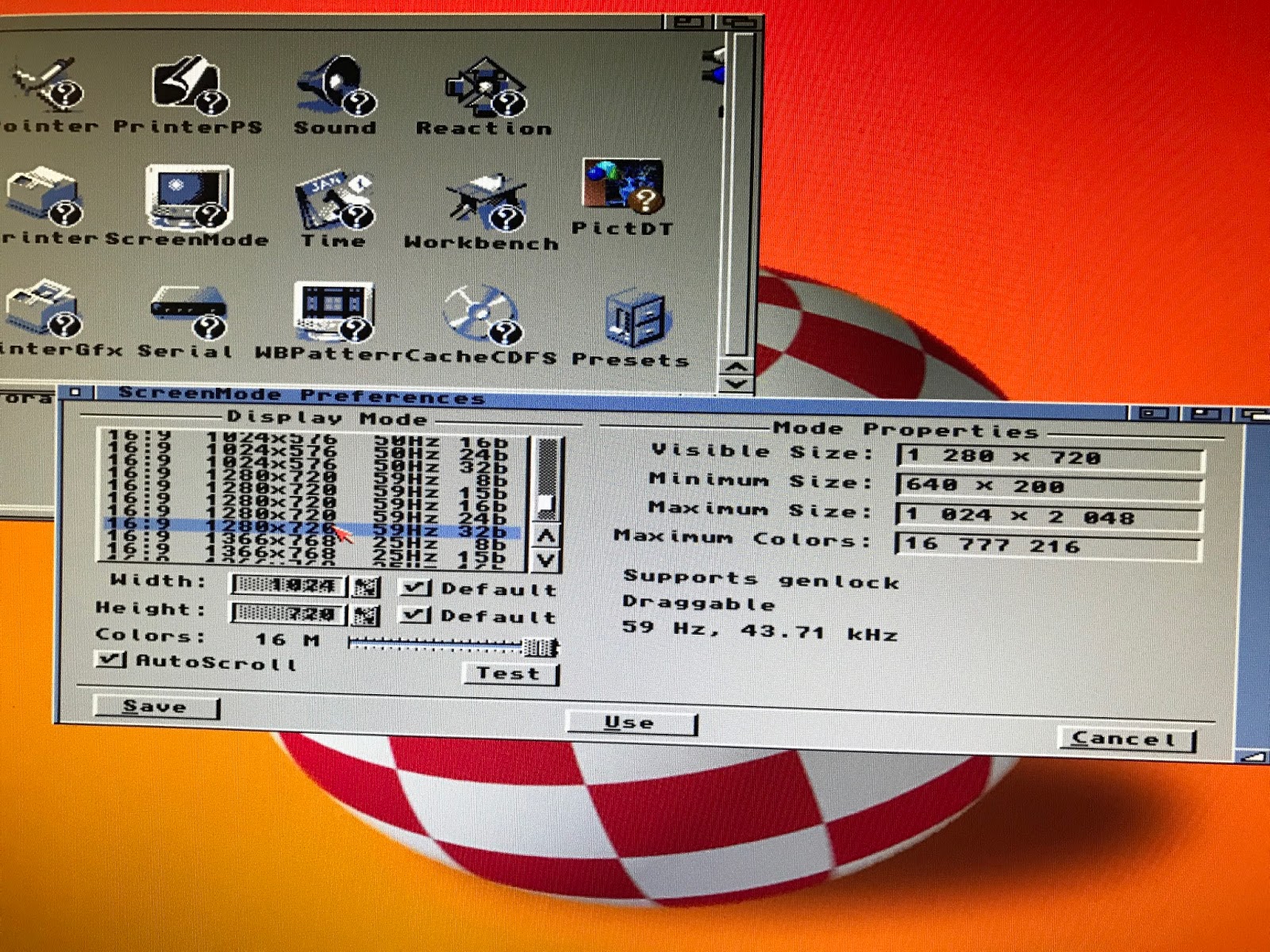

I changed the name as before, and then selected in Screenmode prefs:
Now this is an amazing thing - 720p output from an Amiga 2000 on a 32" LED screen!
I then configured Genesis internet using the GenesisRA Wizard to use the A2065 driver and specified the IP address manually (DHCP doesn't work for the A2065 for some reason):

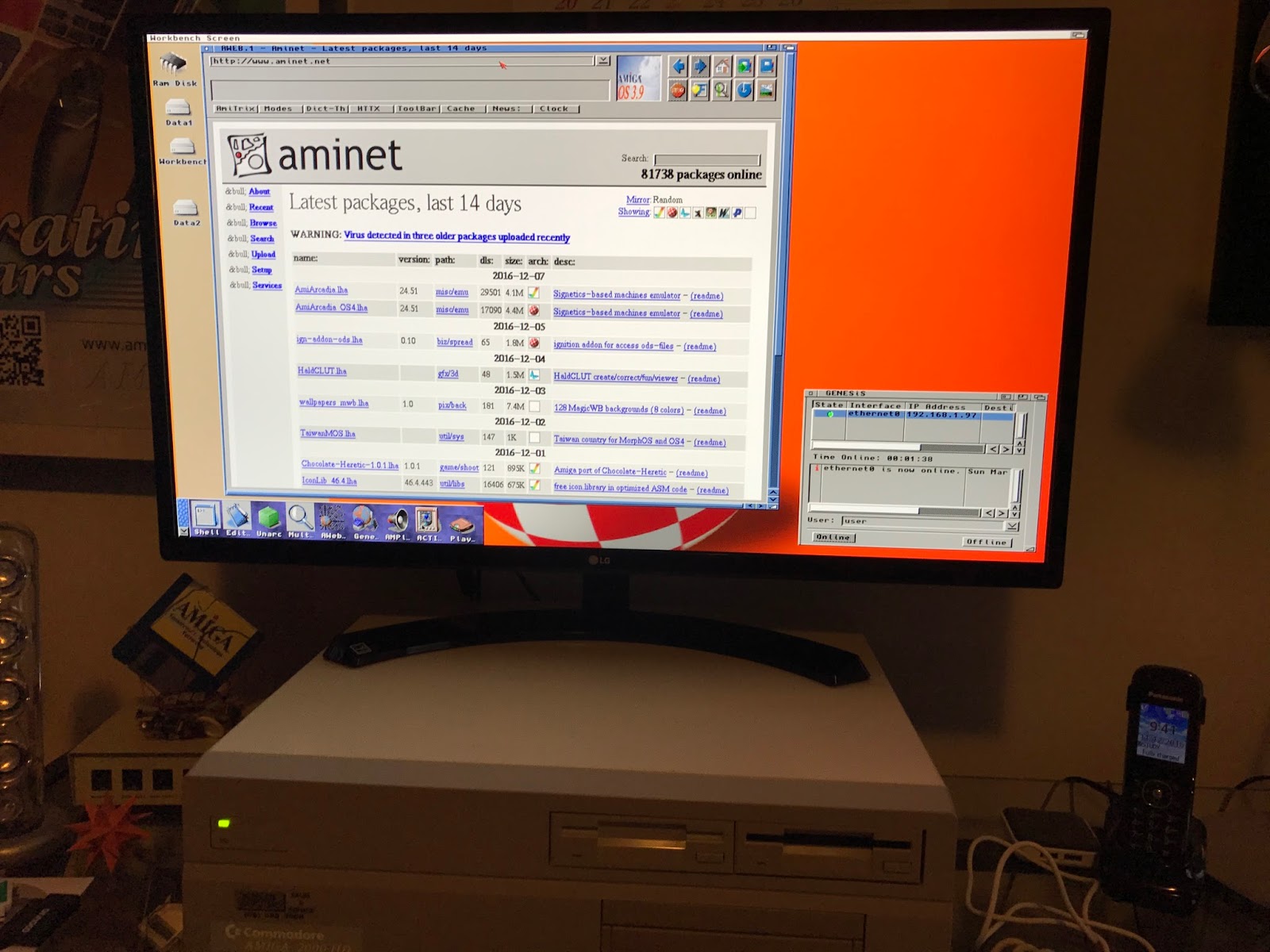

And Voila! We have internet - and thanks to the 720p true colour display, a lot of real estate for the web browser too:
I downloade a Disc Font Collection from Aminet to fix the horrible Topaz font which is used by default in Workbench - I hate that font with a passion and couldn't wait to get rid of it:
I then got onto installing the latest AHI, Delitracker, AmigaAmp and other programs as well (including their dependencies and libraries), all downloaded from Aminet:
I decided to do this entire build myself, rather than cheating by installing AmiKit Real, AmigaSys 4 or ClassicWB as I have been doing of late.
The Amiga 2000 is a special machine for me, having owned it since new, and it is great to be tinkering with it yet again!

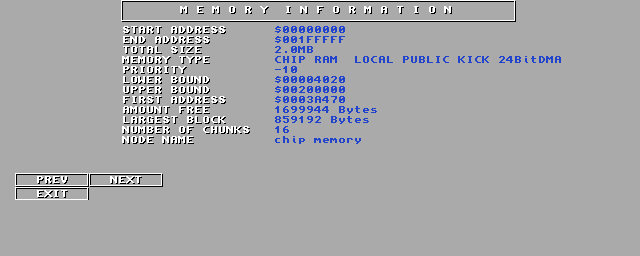

Now I am sure you are interested to know the speed of the Vampire - well, I downloaded SysInfo (latest version) and then spatched it with the no_fpupatch (as the Vampire doesn't have an FPU and this patch is needed to allow SysInfo 4.0 to work). I could then find out.
Earlier on, before I started the build I grabbed the SysInfo performance measurements for my Amiga 2000/030-25Mhz system as below:
I also tried out a few Venus Arts demos too - which support RTG. Apollo Accelerators website Wiki is maintaining a list of RTG games and demos that work well on the Vampire for reference here.
I also ran Foundation: The undiscovered land on the Amiga 2000, which ran perfectly and looked fantastic:
With the Screenshot software installed I could finally stop taking grainy iPhone photos of the 720p Workbench:

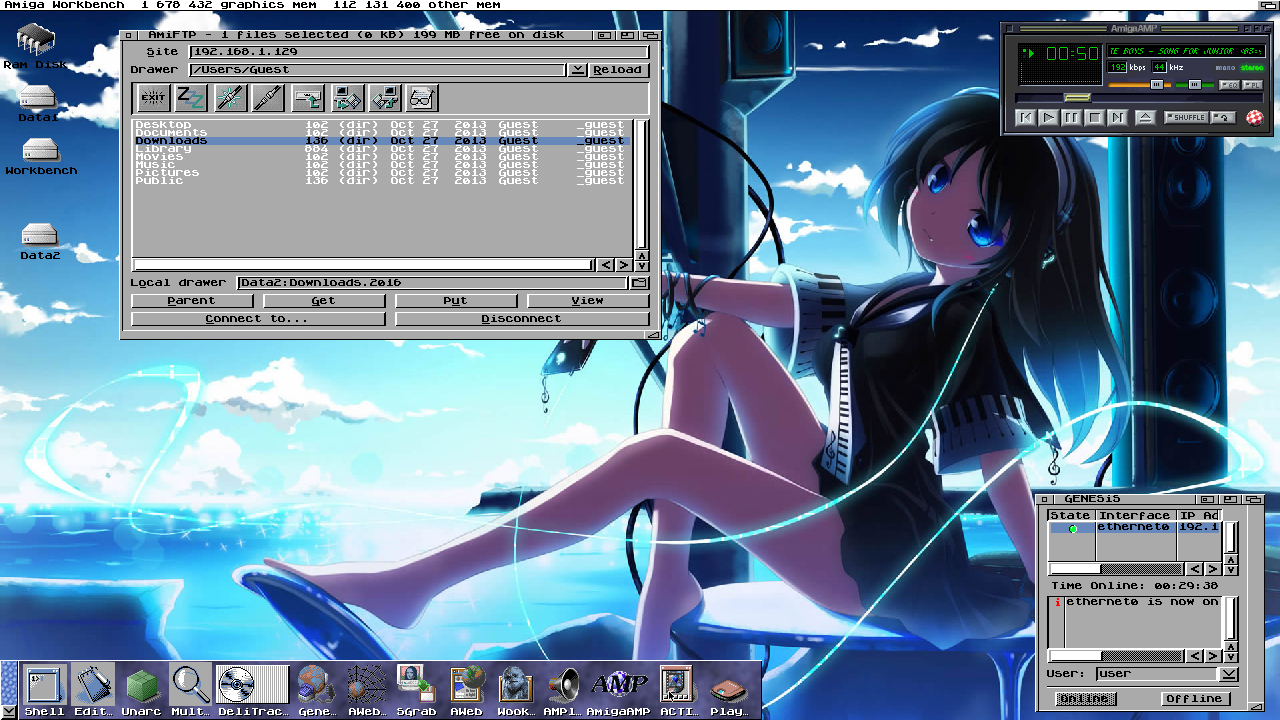

I quickly got to work adding my personal touches - I setup FTP access to my Mac so I could download important software more quickly to the A2000 - MP3 music, modules, demos, anime backdrops:
Someone made comment on an Amiga forum that my blog posts had some nice information inserted in between my favourite Anime girl backdrops...well, what can I say to that! :-)
I have a lot more still to do of course on the Amiga 2000 Vampire build, including installing the Prisma music card, getting the MicroSD card working using the drivers installed as part of the SAGA RTG installation, and a lot more too.
But all that can wait for the next blog post. Until next time!
