I have an old Microbotics / Paravision M1230XA accelerator board, and it's not working properly. Can you help me debugging it?

For starters, a few screenshots would help: SetXA utility window / running, Early Startup Menu boards listing, "showconfig" output, SysInfo screen with speed test results (each of course with a working M1230XA installed).

I mostly test my board with Kickstart 3.0 - are you aware of any issues regarding KS3.0 and the M1230XA?
(apart from the fact that RAM has to be added "manually" / software-wise)

Please leave a comment in the comments section below, if you think you can help.

Or contact me via this thread at amiga.org:
http://www.amiga.org/forums/showthread.php?t=72304

Or here via amigaworld.net:
http://amigaworld.net/modules/newbb/viewtopic.php?topic_id=41801&forum=25&6

Or here via aros-exec.org:
http://aros-exec.org/modules/newbb/viewtopic.php?topic_id=10427&forum=27

Thanks!

- - -

The Microbotics M1230XA seems to work fine without memory installed.

With memory installed, adding the memory to the system doesnt work.

This is the situation with a Kickstart 3.0 Amiga 1200:

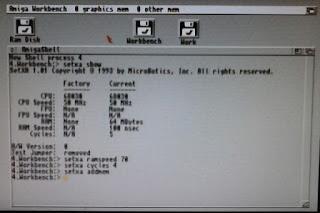

In the picture below you can see the previous settings ("RAM Speed: 100nsec", ...), new settings("setxa ramspeed 70", ...), and the state after adding the board's memory. After "setxa addmem", it takes maybe half a second to activate the memory. During this short timespan the Amiga remains usable - e.g. a mouseclick on the workbench. But once the memory has been added, it looks like any memory access fails. That includes (re)focussing the shell-window, clicking an icon. When keeping the shell window active (no workbench click), keyboard input is still possible, but entering a valid command and hitting <Return> crashes the machine.

Behaviour is almost the same with different RAM SIMMs/speeds/cycles, only the type of system crash differs: sometimes screen graphics corruption, sometimes black screen, sometimes Guru Meditation.

With a Kickstart 3.1 (=autoconfiguring) Amiga 1200 the screen stays black on powerup.
